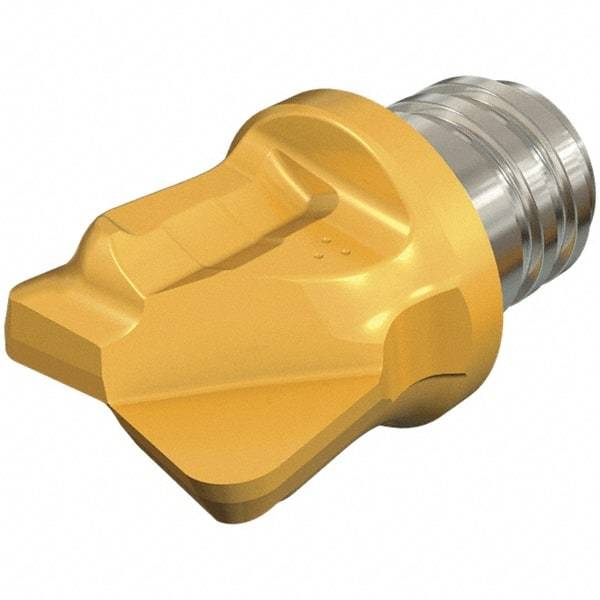

Iscar - MM HT Grade IC903 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 2 Flutes, 12mm Cutting Diam, 5.9mm Depth of Cut, 11.1mm Extension, 0.079" Cnr Rad
Item #: 72321714
Brand: Iscar
Model #: 5622730
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HT |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 5.90 |
| Depth of Cut (Decimal Inch) | 0.2323 |
| Number of Flutes | 2 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | PVD |
| Extension From Holder (mm) | 11.10 |
| Extension From Holder (Decimal Inch) | 0.4370 |
| Thread Size | T08 |
