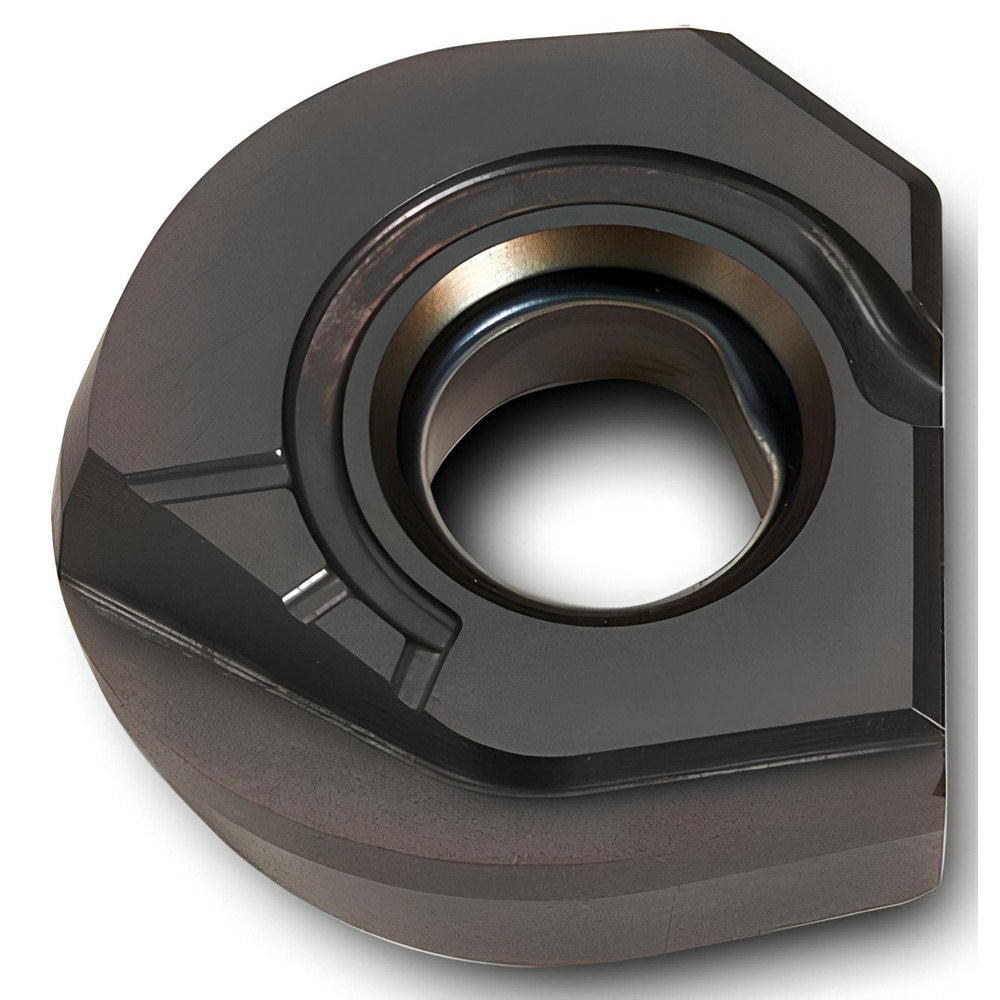

Brand: Ingersoll Cutting Tools / Part #: 6108647
Item #: 99940496
Brand: Ingersoll Cutting Tools
Model #: 6108647
Product Specifications
| Insert Style | NQHG |
| Insert Size Code | 150400 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2530 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Inch) | 5/16 |
| Insert Hand | Right Hand |
| Series | NQHG |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3098 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | NQHG150400R-FM |
| Manufacturers Catalog Number | NQHG150400R-FM IN2530 |
| Cutter Series Compatibility | 12A5; 12A9 |
| Chip Breaker | FM |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 7.8700 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Multi-Use Tool | No |
