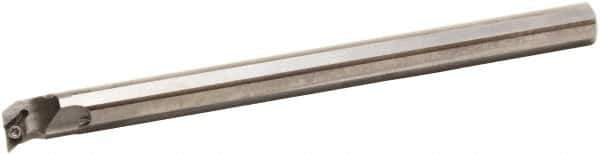

Sumitomo - 0.85" Min Bore Diam, 10" OAL, 5/8" Shank Diam, D-SDUC Indexable Boring Bar - DC.. 21.5 Insert, Screw Holding Method
Item #: 71968663
Brand: Sumitomo
Model #: 2000W3G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | D-SDUC |
| Series | SumiTurn X-Bar |
| Minimum Bore Diameter (Decimal Inch) | 0.8500 |
| Hand of Holder | Right Hand |
| Overall Length (Inch) | 10 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | DC.. 21.5 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.4300 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DC.. 21.5 |
