Turning Insert: DCMT21.52PSS AH725, Carbide
Item #: 37522661
Brand: Tungaloy
Model #: 6864925

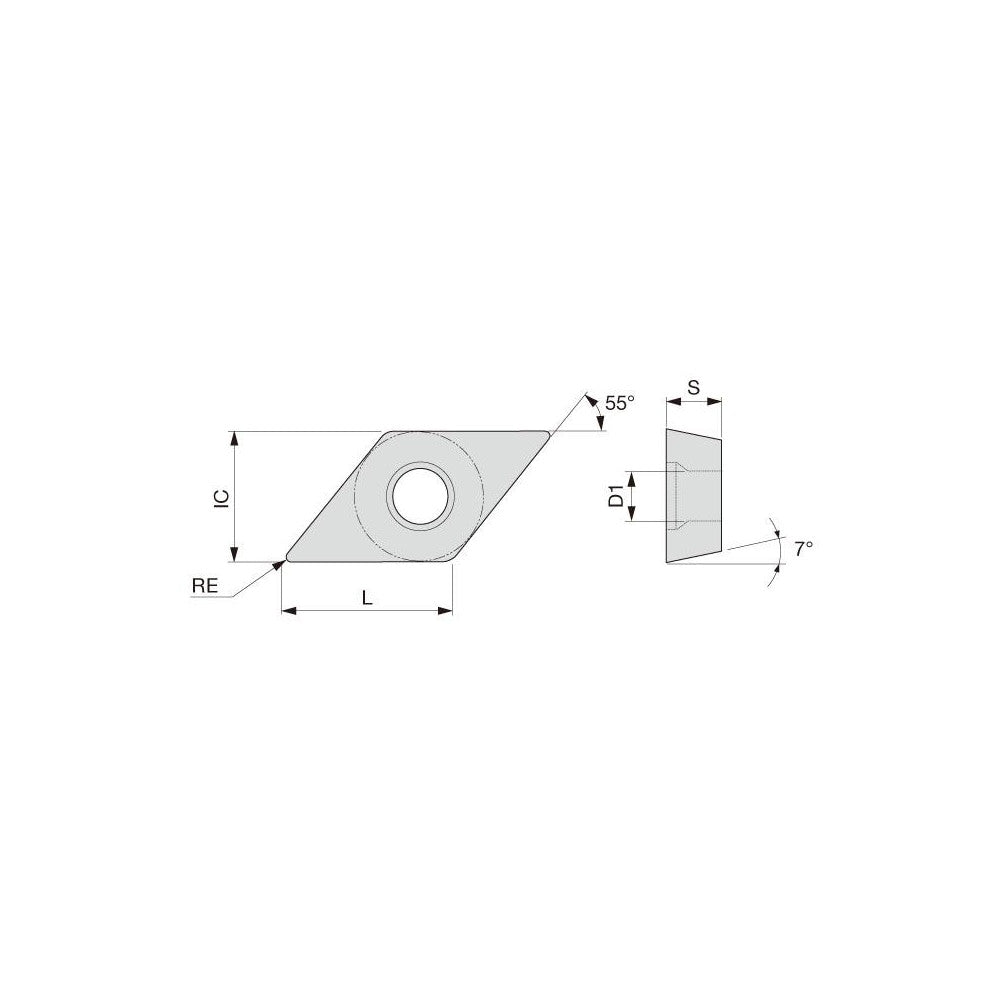

Product Specifications
| ANSI Insert Code | DCMT21.52 |
| ISO Insert Code | DCMT070208 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | AH725 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | DCMT-PSS |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6140 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | DCMT070208-PSS AH725 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6864925 |
| Material Grade | M15; P15; S15; S25; K30; M30; P30; K25 |
| Coating Classification | PVD |
| Chip Breaker | PSS |
| Rake Angle | 10 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DCMT 21.52 PSS |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Back Boring; Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 21.52 |
| ISO Size Code | 070208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.52 |
