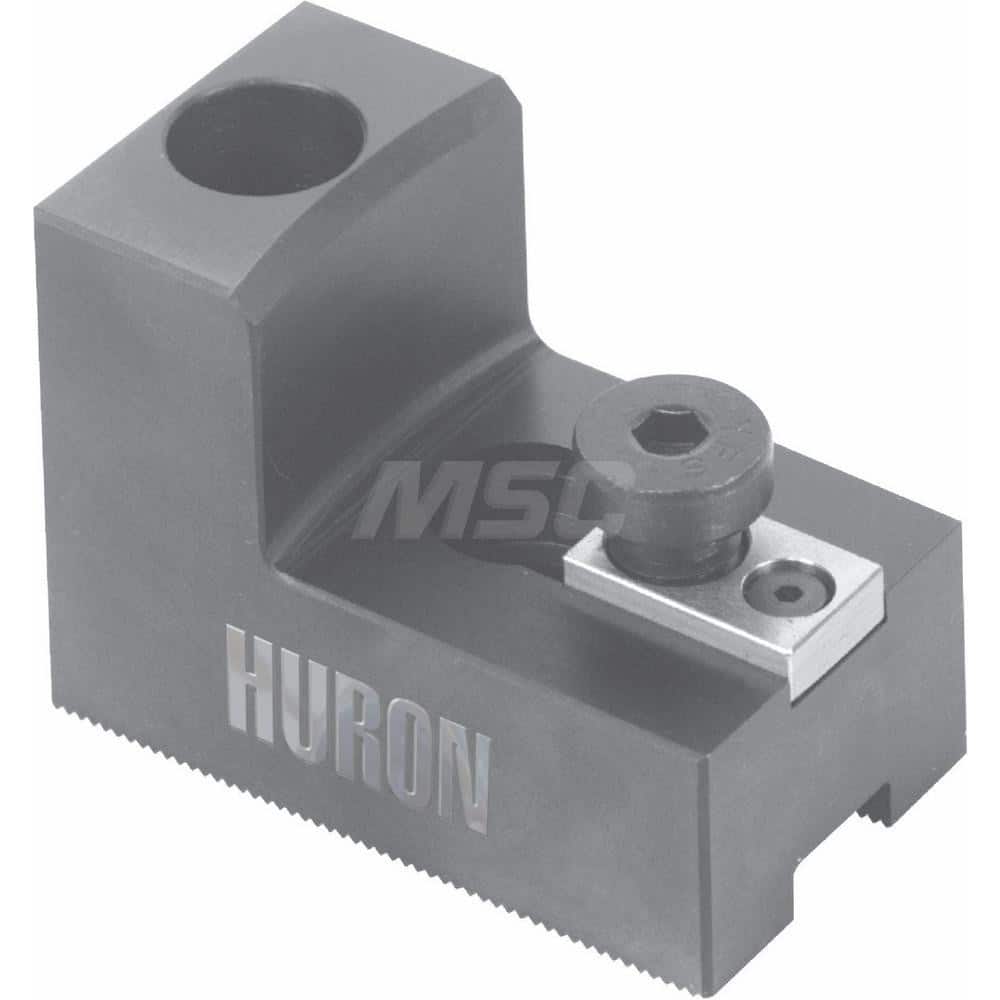

Huron Machine Products - Hard Lathe Chuck Jaws; Jaw Type: Quick-Jaw Change ; Jaw Interface Type: 1.5mm x 60 Serrated ; Maximum Compatible Chuck Diameter (Inch): 6 ; Material: Case Hardened 1018 ; Overall Width/Diameter (Inch): 1-1/4 ; Overall Length (Dec
Item #: 71910368
Brand: Huron Machine Products
Model #: 6SY3BJ
Product Specifications
Hard Lathe Chuck Jaws; Jaw Type: Quick-Jaw Change ; Jaw Interface Type: 1.5mm x 60 Serrated ; Maximum Compatible Chuck Diameter (Inch): 6 ; Material: Case Hardened 1018 ; Overall Width/Diameter (Inch): 1-1/4 ; Overall Length (Decimal Inch): 2.35500
| Jaw Type | Quick-Jaw Change |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Material | Case Hardened 1018 |
| Overall Width/Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 2.35500 |
| Groove Width (Inch) | .473 |
| Number of Jaws | 1 |
| Overall Height (Decimal Inch) | 1.7260 |
| Fastener Size (mm) | M10 |
| Distance Between Mount Hole Centers (Inch) | .790 |
