Turning Insert: TNMG332EN-M70 CTCK120, Carbide
Item #: 26234708
Brand: Ceratizit
Model #: 70155518

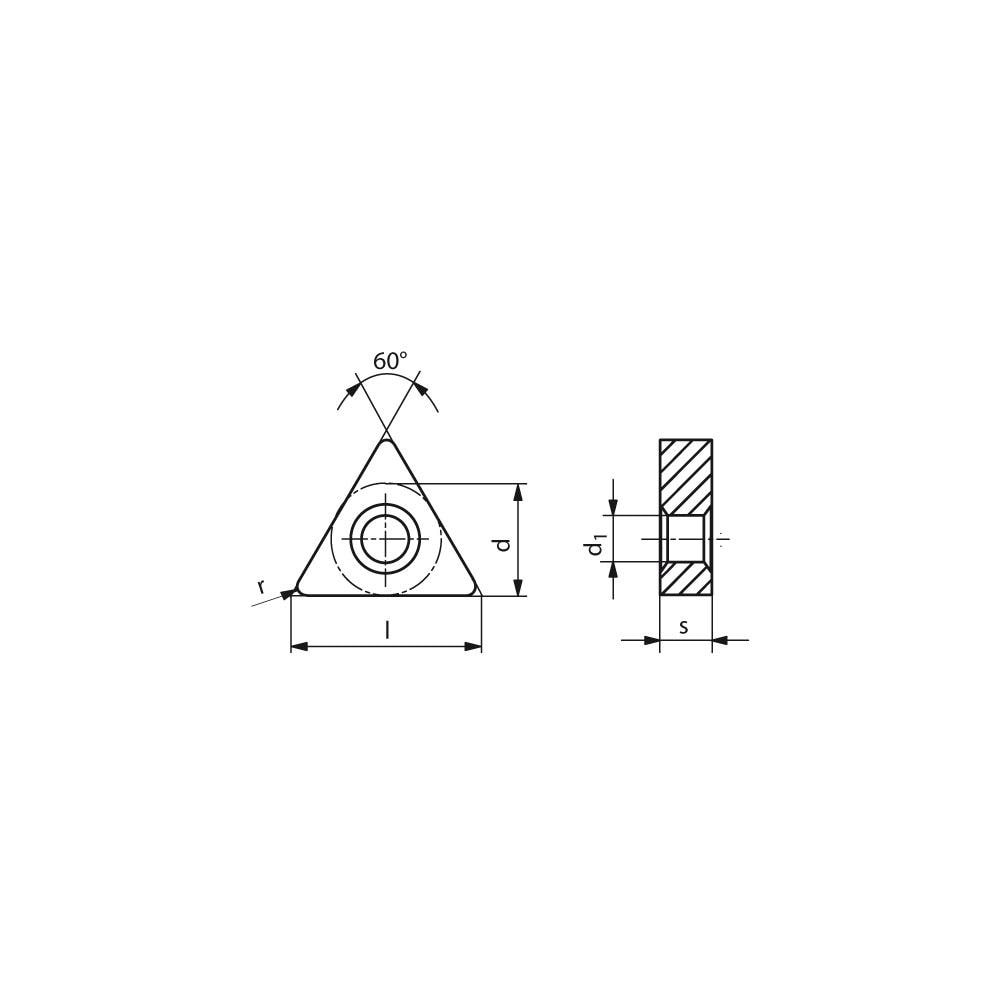

Product Specifications
| ANSI Insert Code | TNMG332 |
| ISO Insert Code | TNMG160408 |
| Relief Angle | 0 |
| Insert Style | TNMG |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | CTCK120 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | TNMG |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.6496 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | TNMG 160408EN-M70 CTCK120 |
| Chip Breaker | M70 |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
