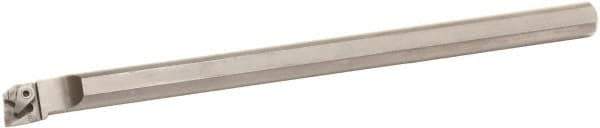

Sumitomo - 1.531" Min Bore Diam, 14" OAL, 1-1/4" Shank Diam, BCTJP Indexable Boring Bar - TPG 32 Insert, Clamp Holding Method
Item #: 71525026
Brand: Sumitomo
Model #: 2000W07
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | BCTJP |
| Minimum Bore Diameter (Decimal Inch) | 1.5310 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | TPG 32 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Complete Insert Compatibility | TPG 32 |
| Toolholder Material | Steel |
