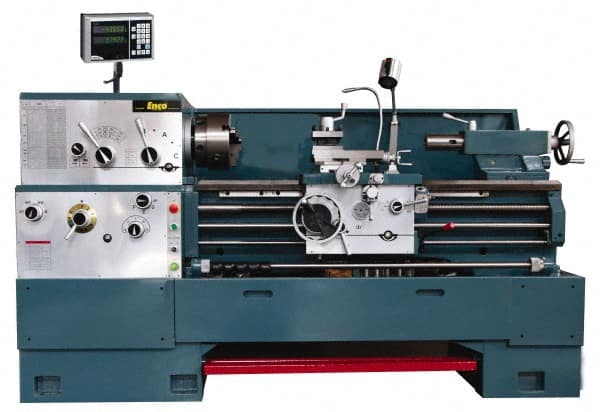

Enco - 3 Phase 230/460V 7-1/2 hp 16" Swing Geared Head Engine Lathe
Item #: 71485791
Brand: Enco
Model #: 328-1313 F2AX
Product Specifications
| Machine Type | Engine Lathe |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Voltage | 230/460 |
| Horsepower (HP) | 7-1/2 |
| Swing (Inch) | 16 |
| Distance Between Centers (Inch) | 60 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Spindle Taper Size | 7MT |
| Swing Over Gap (Inch) | 25-7/8 |
| Swing Over Gap (Decimal Inch) | 25.8750 |
| Swing Over Cross Slide (Inch) | 10 |
| Swing Over Cross Slide (Decimal Inch) | 10.0000 |
| Gap Length (Decimal Inch) | 12.2500 |
| Bed Width (Decimal Inch) | 16.0000 |
| Spindle Nose Designation | D1-8 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 25.00 |
| Maximum Spindle Speed (RPM) | 1800.00 |
| Number of Inch Threads | 61 |
| Maximum Threads Per Inch | 72 |
| Minimum Metric Pitch (Decimal Inch) | 0.0020 |
| Maximum Metric Pitch (Decimal Inch) | 0.7874 |
| Number of Metric Threads | 24 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0913 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000600 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0365 |
| Minimum Threads Per Inch | 1-5/8 |
| Cross Slide Travel (Decimal Inch) | 55.0000 |
| Top Slide Travel (Decimal Inch) | 5.0000 |
| Tailstock Taper Size | 4MT |
| Overall Length (Inch) | 116-1/2 |
| Overall Length (Decimal Inch) | 116.5000 |
| Overall Height (Inch) | 48 |
| Overall Height (Decimal Inch) | 48.0000 |
| Overall Depth (Inch) | 40 |
| Overall Depth (Decimal Inch) | 40.0000 |
