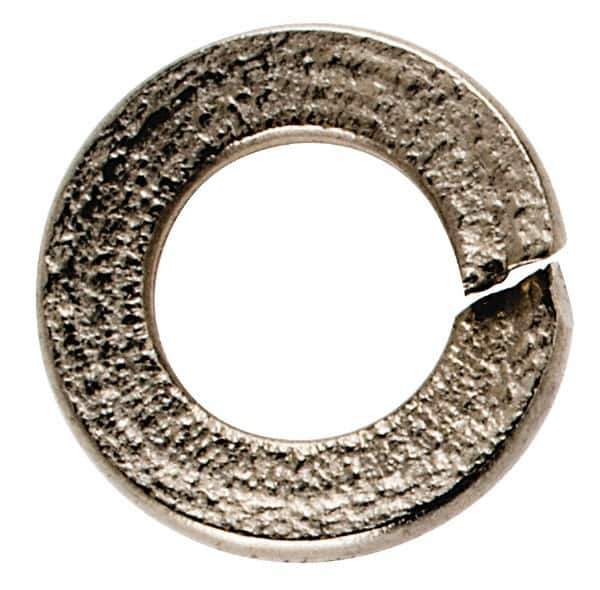

Value Collection - M3, 3.1mm ID, 5.8mm OD, 0.8mm Thick Split Lock Washer - 316 Austenitic Grade A4 Stainless Steel, Uncoated, 3.1mm Min ID, 3.4mm Max ID, 24mm Min OD, 5.8mm Max OD
Item #: 71430623
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M3 |
| Material | Stainless Steel |
| Material Grade | 316; Austenitic Grade A4 |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 3.10 |
| Outside Diameter (mm) | 5.80 |
| Thickness (mm) | 0.80 |
| Minimum Inside Diameter (mm) | 3.10 |
| Maximum Inside Diameter (mm) | 3.40 |
| Minimum Outside Diameter (mm) | 24.00 |
| Maximum Outside Diameter (mm) | 5.80 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (mm) | 0.80 |
| Fastener Standard | DIN 127B |
