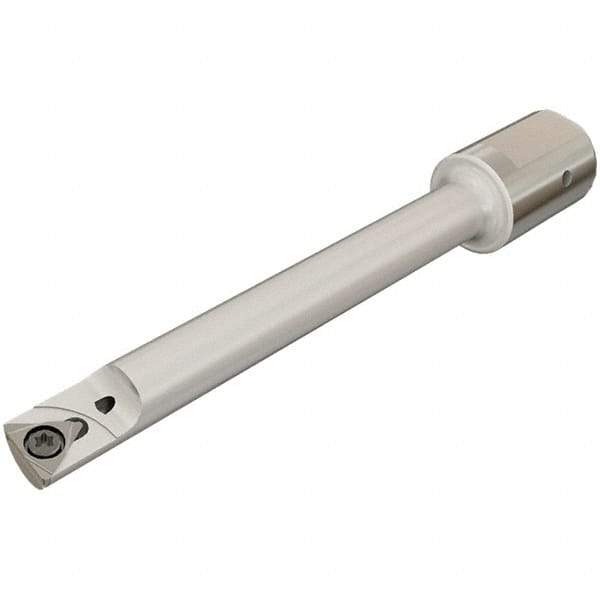

Iscar - 11.99mm Min Bore Diam, 111.99mm OAL, 16mm Shank Diam, IHAXF-E Indexable Boring Bar - 89.99mm Max Bore Depth, TPGX 73.. Insert
Item #: 71051353
Brand: Iscar
Model #: 4550983
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | IHAXF-E |
| Series | Itsbore |
| Minimum Bore Diameter (mm) | 11.99 |
| Minimum Bore Diameter (Decimal Inch) | 0.4720 |
| Maximum Bore Depth (mm) | 89.99 |
| Maximum Bore Depth (Decimal Inch) | 3.5430 |
| Overall Length (mm) | 111.99 |
| Overall Length (Decimal Inch) | 4.4090 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Compatibility | TPGX 73.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Positive |
| Lead Angle | 3 |
| Maximum Bore Diameter (mm) | 14.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5510 |
| Rake Angle | 3 (Axial) |
| Complete Insert Compatibility | TPGX 730; TPGX 730-L; TPGX 730T; TPGX 731; TPGX 731-L; TPGX 731T |
| Toolholder Material | Carbide |
