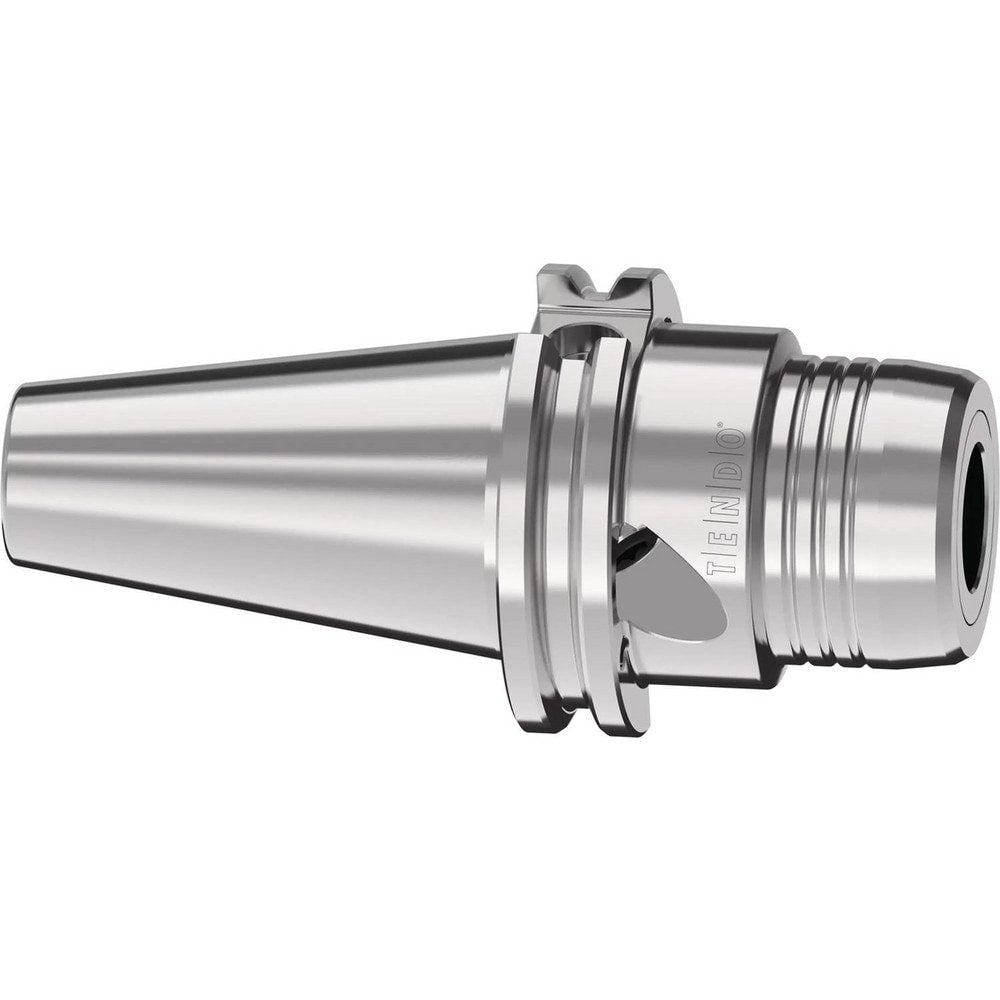

Hydraulic Tool Chuck: CAT40 Taper Shank, 10.00 mm Hole
Item #: 76994110
Brand: Schunk
Model #: 1479977
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT40 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-1/16 |
| Nose Diameter (Mm) ( - 2 Decimals) | 26.70 |
| Projection (mm) | 63.500 |
| Projection | 2-1/2 |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.6142 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.375 |
| Overall Length (mm) | 111 |
| Hole Diameter (Mm) ( - 0 Decimals) | 10.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.0512 |
| Projection (Decimal Inch) | 2.5 |
| UNSPSC Code | 27112800 |
| Country of Origin | Germany |
