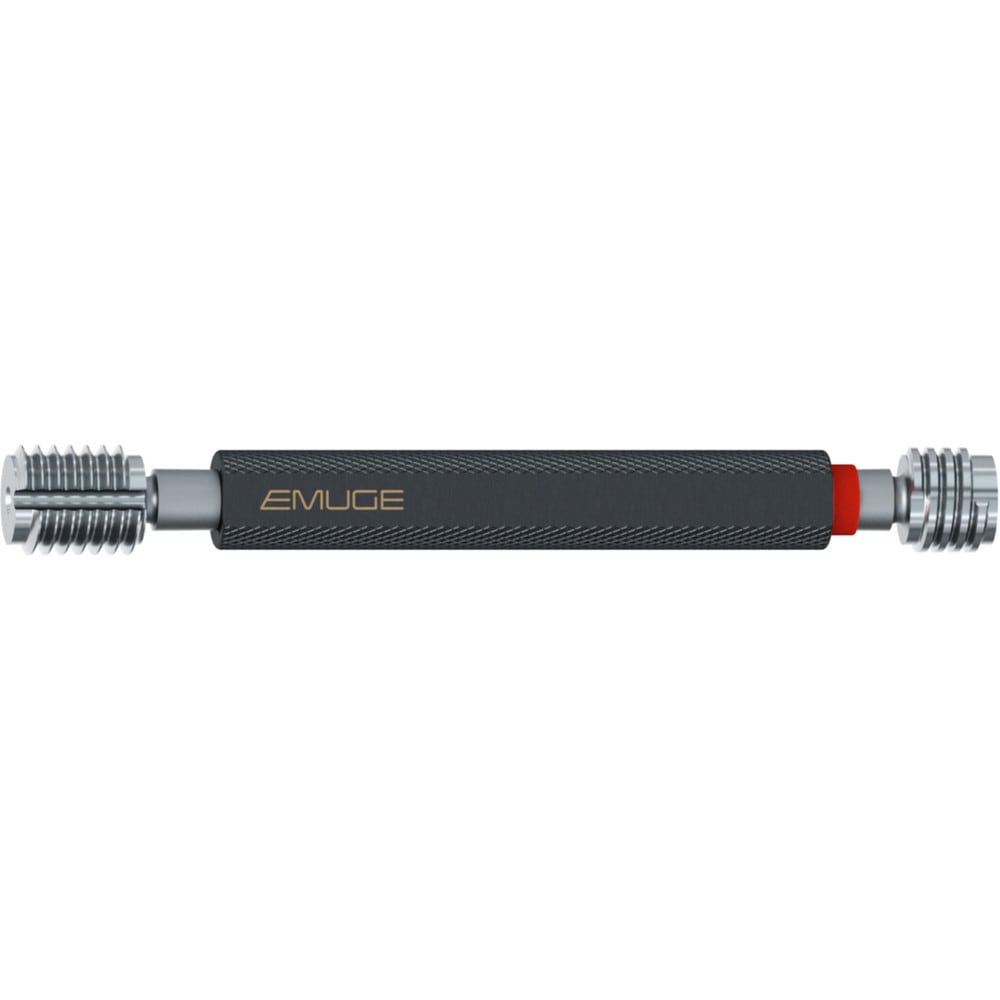

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: 1-12; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.9459; Go Pitch Diameter (mm): 24.0260; No Go Pitch Diameter (mm): 24.1710; No Go Pitch Diameter (Decimal Inch): 0.95160
Item #: 02815520
Brand: Emuge
Model #: L0100160.5052
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | 1-12 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.9459 |
| Go Pitch Diameter (mm) | 24.0260 |
| No Go Pitch Diameter (mm) | 24.1710 |
| No Go Pitch Diameter (Decimal Inch) | 0.95160 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 5.2760 |
| Overall Length (mm) | 134.0000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | NIST; DIN2280; Gauge dimensions according to ANSI/ASME B1.31 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNF |
| UNSPSC Code | 41111619 |
