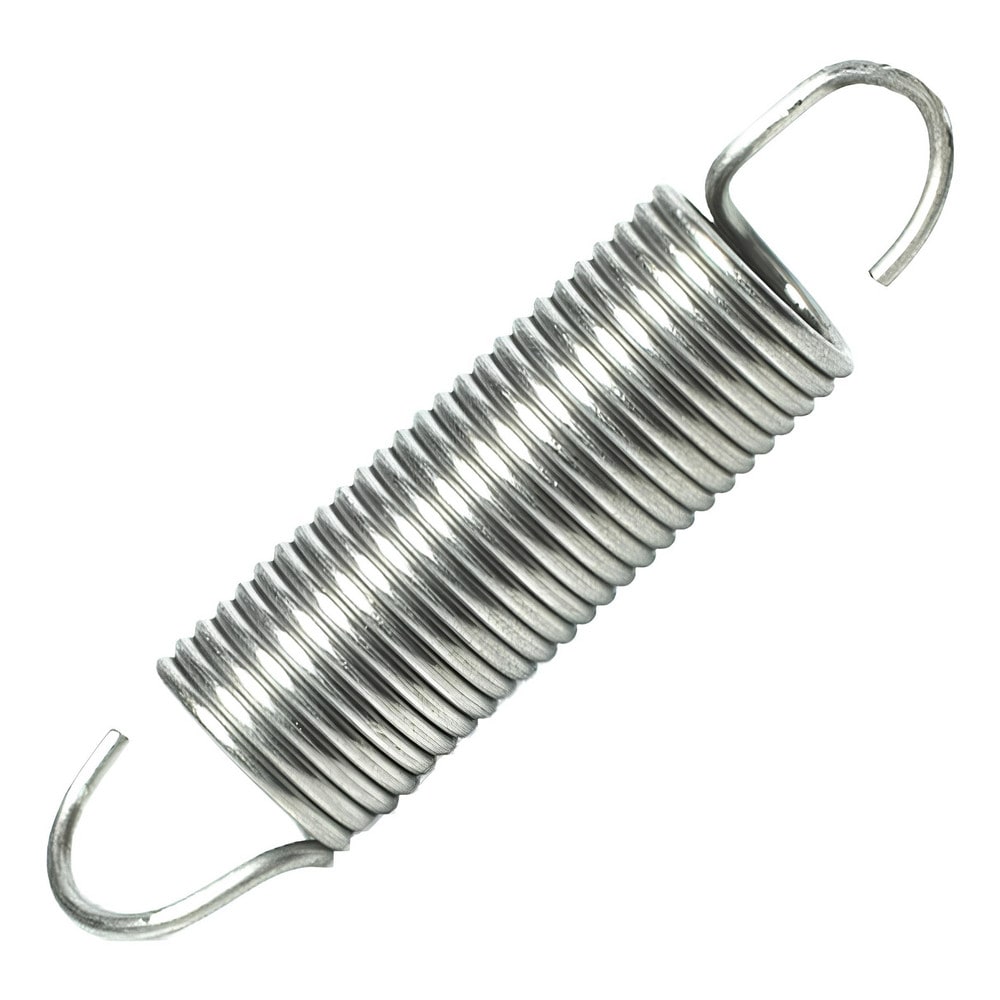

Extension Springs; End Type: Hook; Outside Diameter (mm): 14.0000; Spring Rate: 11.2000; Material: Stainless Steel; Overall Length (Decimal Inch): 4.0180
Item #: 03048352
Brand: Associated Spring Raymond
Model #: MHM1402000098S
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 14.0000 |
| Spring Rate | 11.2000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 4.0180 |
| Initial Tension (N) | 32.7 |
| Maximum Extended Length (mm) | 157.00 |
| Free Length (mm) | 98.000 |
| Inside Hook Length (Fractional Inch) | 3-55/64 |
| Standards | JIS G4314 SUS 302/304; EN 10270-3; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (mm) | 2.00 |
| UNSPSC Code | 31161907 |
