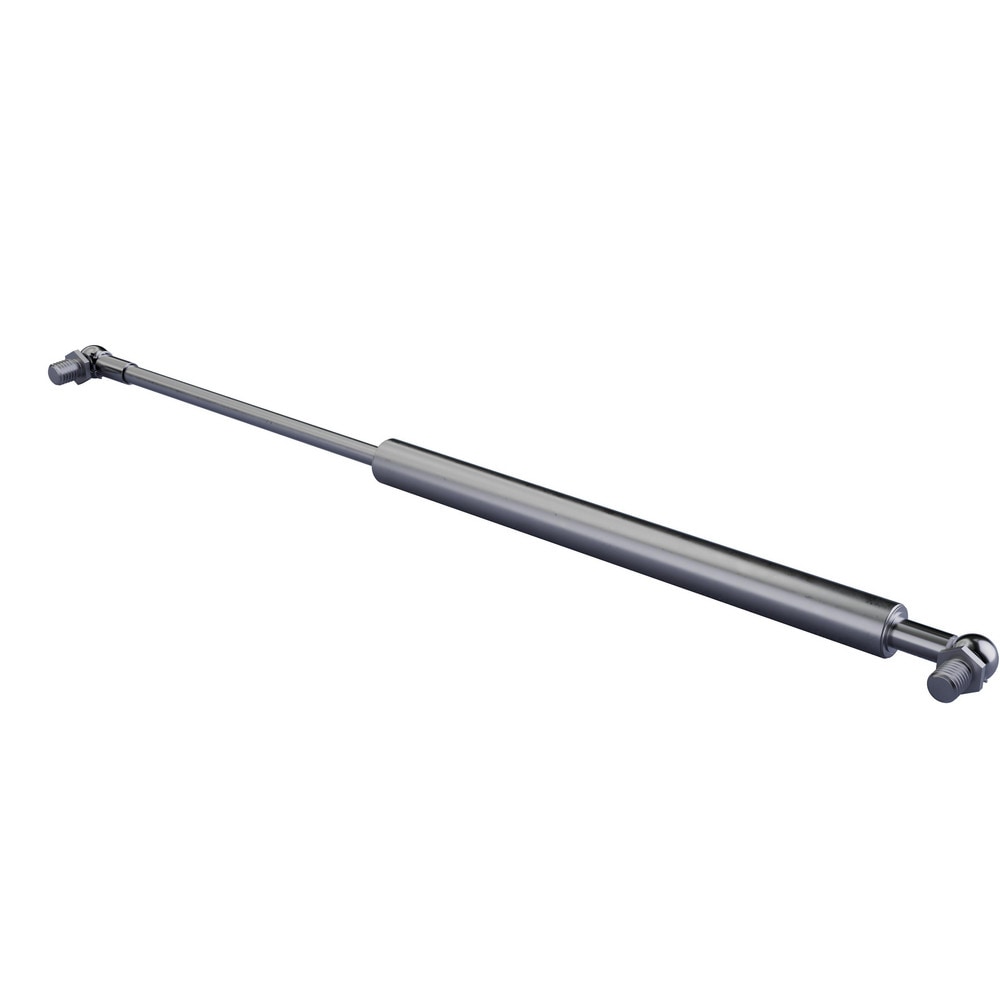

Extended Life Gas Spring: 75.00 lb Capacity
Item #: 02435634
Brand: Industrial Gas Springs
Model #: 15S000812XX0334
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (mm) | 10.00 |
| Tube Diameter (mm) | 23.00 |
| End Fitting Connection | Ball Joint |
| Extended Length (Decimal Inch) | 12.7900 |
| Compressed Length (Decimal Inch) | 8.78 |
| Extension Force | 75 |
| Stroke Length (Decimal Inch) | 4.0200 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 75.00 |
| Special Item Information | Stainless Steel Ball Joint |
| Finish Coating | Uncoated |
| UNSPSC Code | 31162800 |
