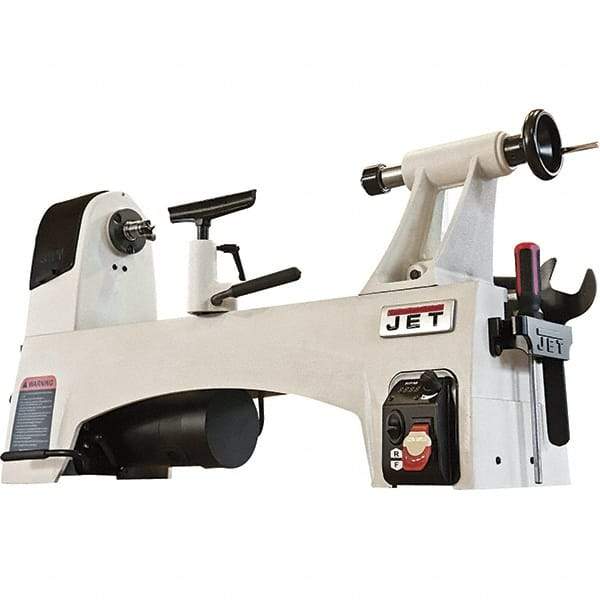

Jet - 24 Position, 12-1/2" Swing, 20-1/2" Distance Between Center, Cast Iron Woodworking Lathe - 2MT Head/Tailstock, 3/8" Spindle Hole, 3" Face Plate, 60 to 3,600 RPM, 2" Quill Travel
Item #: 70938410
Brand: Jet
Model #: 719200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Swing (Inch) | 12-1/2 |
| Distance Between Centers (Inch) | 20-1/2 |
| Swing Over Tool Rest Base (Inch) | 10 |
| Swing Over Tool Rest Base (Decimal Inch) | 9.4500 |
| Face Plate Diameter (Inch) | 3 |
| Headstock Taper Size | 2MT |
| Tailstock Taper Size | 2MT |
| Number of Indexing Positions | 24 |
| Maximum Spindle Speed (RPM) | 3600.00 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Headstock Spindle Hole Size (Inch) | 3/8 |
| Tailstock Spindle Hole Size (Inch) | 3/8 |
| Tailstock Quill Travel (Inch) | 2 |
| Bed Construction | Cast Iron |
| Horsepower (HP) | 1 |
| Voltage | 115 |
| Phase | 1 |
| Overall Depth (Decimal Inch) | 33.6000 |
| Overall Height (Decimal Inch) | 17.7000 |
