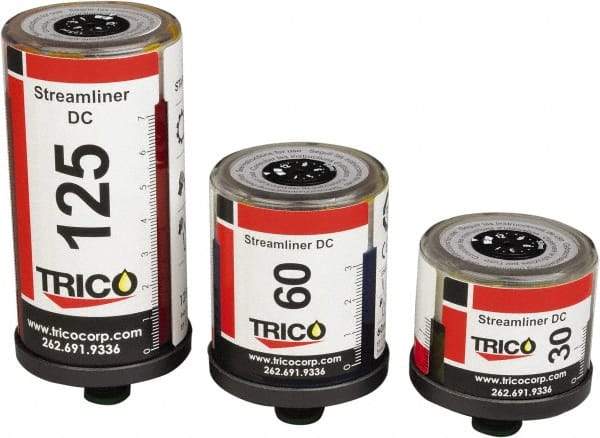

Trico - 4.23 Ounce Reservoir Capacity, 1/4 NPT Thread, Plastic, Electrochemical, Grease Cup and Lubricator - -20 to 55°C Operating Temp, 5 Bar Operating Pressure, 4.54" High x 2.05" Diam
Item #: 70913686
Brand: Trico
Model #: 33945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Operation | Electrochemical |
| Reservoir Capacity Range | 1 oz. - 7.9 oz. |
| Reservoir Material | Plastic |
| Shank Thread Size | 1/4 |
| Shank Thread Type | NPT |
| Reservoir Capacity (oz.) | 4.23 |
| Reservoir Capacity (mL) | 125.00 |
| Overall Height (mm) | 115.32 |
| Overall Height (Decimal Inch) | 4.5400 |
| Minimum Operating Temperature (F) | -4.00 |
| Minimum Operating Temperature (C) | -20.00 |
| Diameter (mm) | 52.07 |
| Diameter (Inch) | 2.0500 |
| Maximum Operating Temperature (F) | 122.00 |
| Maximum Operating Temperature (C) | 55.00 |
| Inlet Fitting Thread Type | NPT |
| Maximum Operating Pressure (psi) | 72.00 |
| Maximum Operating Pressure (bar) | 5.00 |
| Maximum Operating Pressure (kg-f/sq cm) | 5.06 |
| Compatible Grease Type | Food Grade |
| Includes | Mobil Grease FM 222 |
| PSC Code | 4930 |
