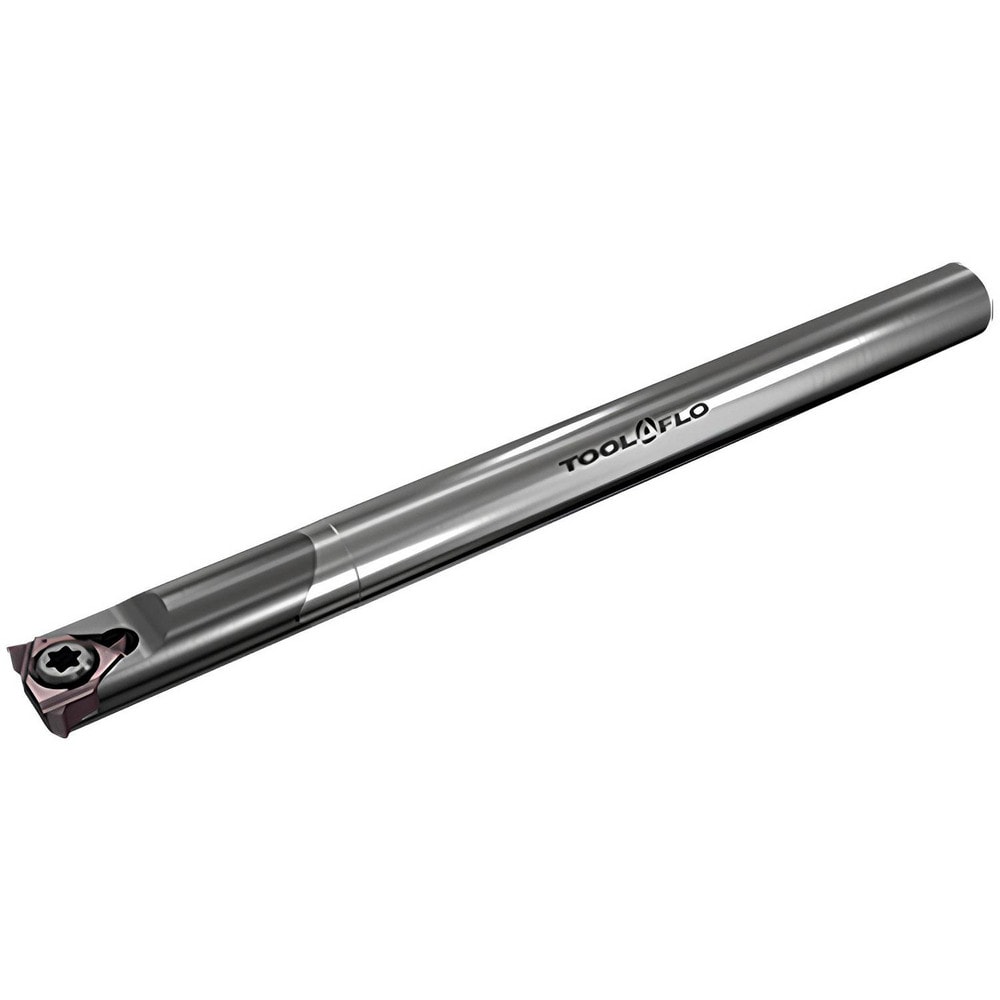

Indexable Thread Mills; Cutting Diameter (mm): 8.80; Compatible Insert Style: 08IR/EL; Insert Style: 08IR/EL
Item #: 02933778
Brand: Tool-Flo
Model #: 2456024
Product Specifications
| Cutting Diameter (mm) | 8.80 |
| Compatible Insert Style | 08IR/EL |
| Insert Style | 08IR/EL |
| Compatible Insert Size Code | 08IR/EL |
| Toolholder Style | Carbide Cutter Body with Coolant Supply |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 6.0000 |
| Insert Holding Method | Screw |
| Number of Threading Inserts | 1 |
| Overall Length (mm) | 100.0000 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Cutting Direction | Right Hand |
| Toolholder Material | Carbide |
| Thread Type | Internal; External |
| Series | MT SERIES |
| Flute Type | Straight |
| Cutting Tool Application | Threading |
| Insert Inscribed Circle (Inch) | 3/16 |
| Tool Application | Thread Milling |
| Tool Performance | General Purpose |
| Number Of Flutes | 1 |
| Coolant Through | Yes |
| UNSPSC Code | 23291800 |
