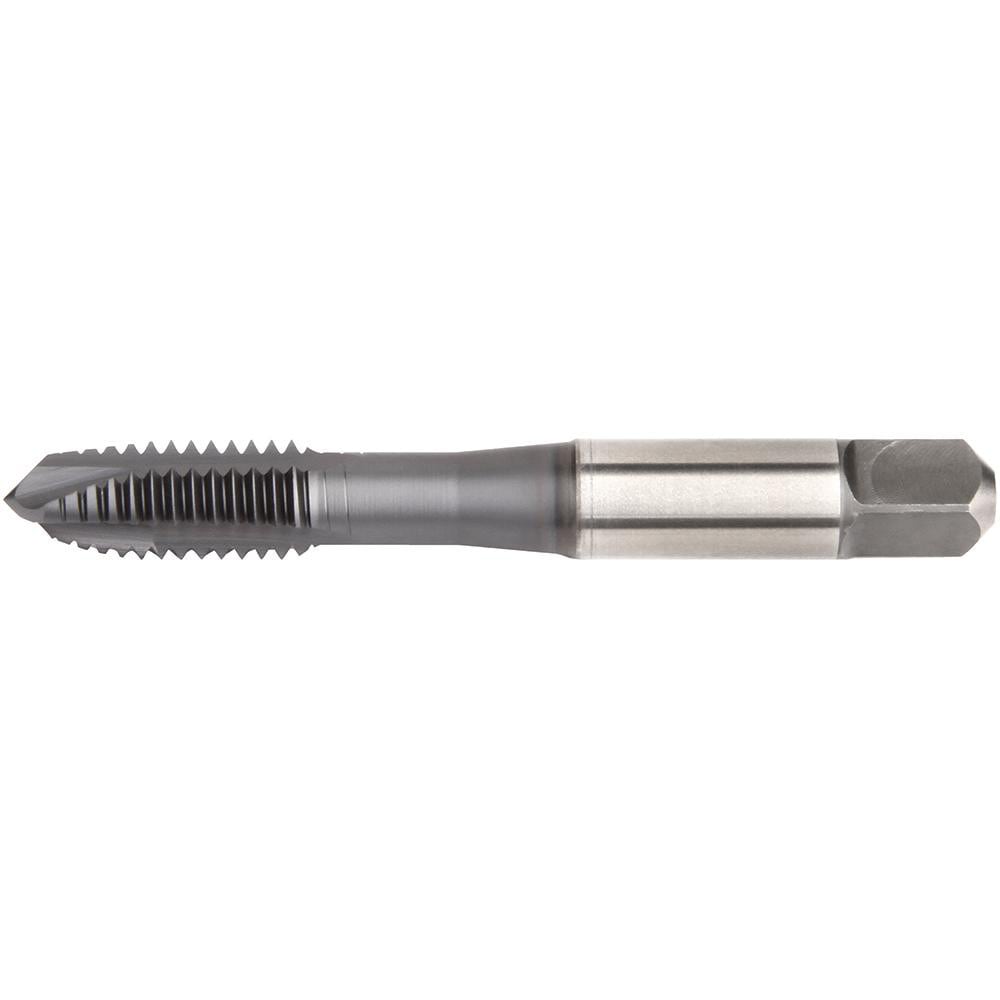

Brand: Widia / Part #: 5367005
Item #: 94016292
Brand: Widia
Model #: 5367005
Product Specifications
| Thread Size (Inch) | 5/8-18 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Class Of Fit | H3 |
| Coating/Finish | TiCN |
| Threads per Inch | 18 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.8900 |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Thread Standard | UNF |
| Material Grade | WP42EG |
| Thread Length (Decimal Inch) | 1.0900 |
| Overall Length (Decimal Inch) | 3.8100 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Size (Decimal Inch) | 0.3570 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
