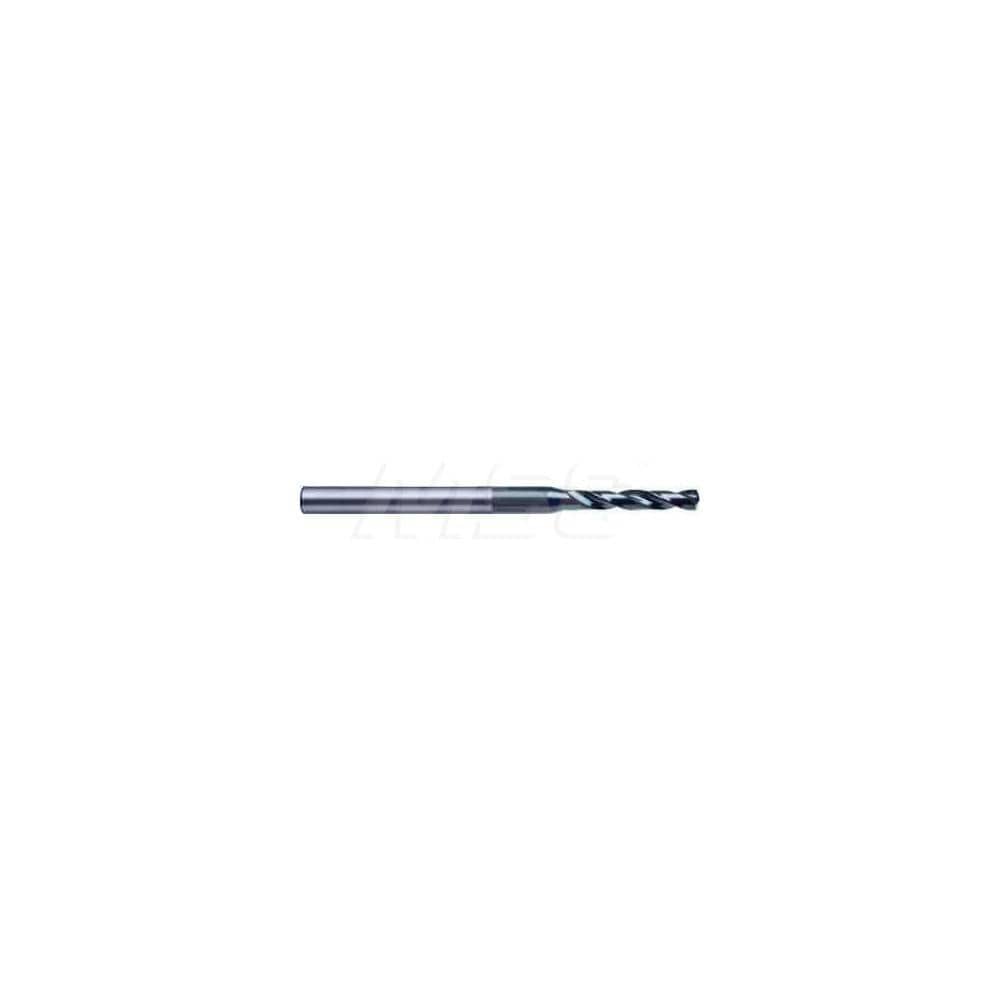

Micro Drill Bit: 2.40 mm Dia, (0.0945"), 140 deg, Solid Carbide
Item #: 62964960
Brand: Guhring
Model #: 9064000024000
Product Specifications
| Drill Bit Size (mm) | 2.40 |
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 14.40 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 11.50 |
| Series | 6400 |
| Overall Length (mm) | 59.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.002 to +0.012 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 4.00 |
| Flute By Diameter Ratio | 4xD |
| Material Grade | DK460UF |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 2.40 |
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 14.40 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 11.50 |
| Series | 6400 |
| Overall Length (mm) | 59.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance | +0.002 to +0.012 mm |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 4.00 |
| Flute By Diameter Ratio | 4xD |
| Material Grade | DK460UF |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| MSC Part # | 62964960 |
| Mfr Part # | 9064000024000 |
| Country of Origin Country of Origin is subject to change | Germany |
