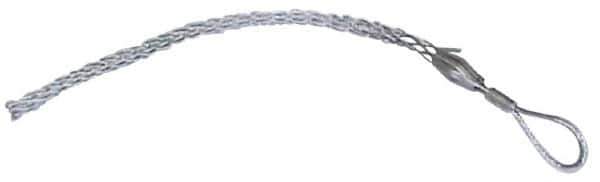

Woodhead Electrical - Offset Eye, Split Lace, Steel Wire Pulling Grip - 19" Mesh, 1-3/4 to 1.99" Cable Diam
Item #: 70498118
Brand: Woodhead Electrical
Model #: 36124
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Type | Wire Pulling Grip |
| Material | Steel |
| Eye Type | Offset Eye |
| Grip Design | Split Lace |
| Mesh Length (Inch) | 19 |
| Maximum Compatible Cable Diameter (mm) | 50.55 |
| Maximum Compatible Cable Diameter (Decimal Inch) | 1.9900 |
| Minimum Compatible Cable Diameter (mm) | 44.45 |
| Minimum Compatible Cable Diameter (Decimal Inch) | 1-3/4 |
| Breaking Strength (kg) | 3311.22 |
| Breaking Strength (Lb.) | 7300 |
| Standards Met | CSA File LR32159 Certified |
