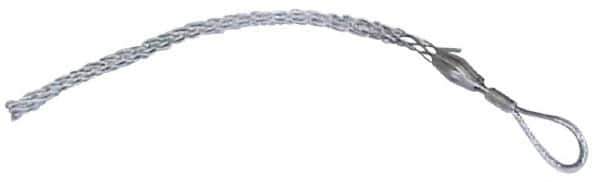

Woodhead Electrical - Flexible Eye, Single Weave Mesh, Steel Wire Pulling Grip - 22" Mesh, 1-1/4 to 1.49" Cable Diam
Item #: 70497821
Brand: Woodhead Electrical
Model #: 35914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Type | Wire Pulling Grip |
| Material | Steel |
| Eye Type | Flexible Eye |
| Grip Design | Single Weave Mesh |
| Mesh Length (Inch) | 22 |
| Maximum Compatible Cable Diameter (mm) | 37.85 |
| Maximum Compatible Cable Diameter (Decimal Inch) | 1.4900 |
| Minimum Compatible Cable Diameter (mm) | 31-3/4 |
| Minimum Compatible Cable Diameter (Decimal Inch) | 1-1/4 |
| Breaking Strength (kg) | 3401.94 |
| Breaking Strength (Lb.) | 7500 |
| Standards Met | CSA File LR32159 Certified |
