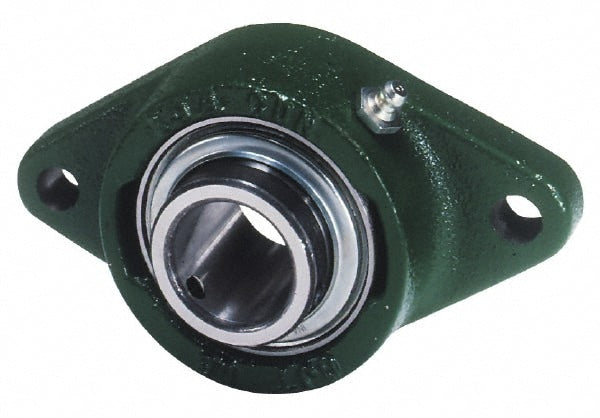

35mm ID, 6.142" OAL x 1.831" OAH 2-Bolt Set Screw Econseal In
Item #: 57132359
Brand: INA Bearing
Model #: PCJTY35
Product Specifications
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 35.0000 |
| Inside Diameter (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 6.1420 |
| Overall Height (Decimal Inch) | 1.8310 |
| Static Load Capacity | 3450.0 |
| Dynamic Load Capacity (Lb.) | 5800 |
| Distance Between Base And Center (mm) | 92.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.6420 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.300 |
| Flange Thickness (Decimal Inch) | 0.5510 |
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 35.0000 |
| Inside Diameter (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 6.1420 |
| Overall Height (Decimal Inch) | 1.8310 |
| Static Load Capacity | 3450.0 |
| Dynamic Load Capacity (Lb.) | 5800 |
| Distance Between Base And Center (mm) | 92.5000 |
| Distance Between Base And Center (Decimal Inch) | 3.6420 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.300 |
| Flange Thickness (Decimal Inch) | 0.5510 |
| MSC Part # | 57132359 |
| Mfr Part # | PCJTY35 |
| Country of Origin Country of Origin is subject to change | Vietnam |
