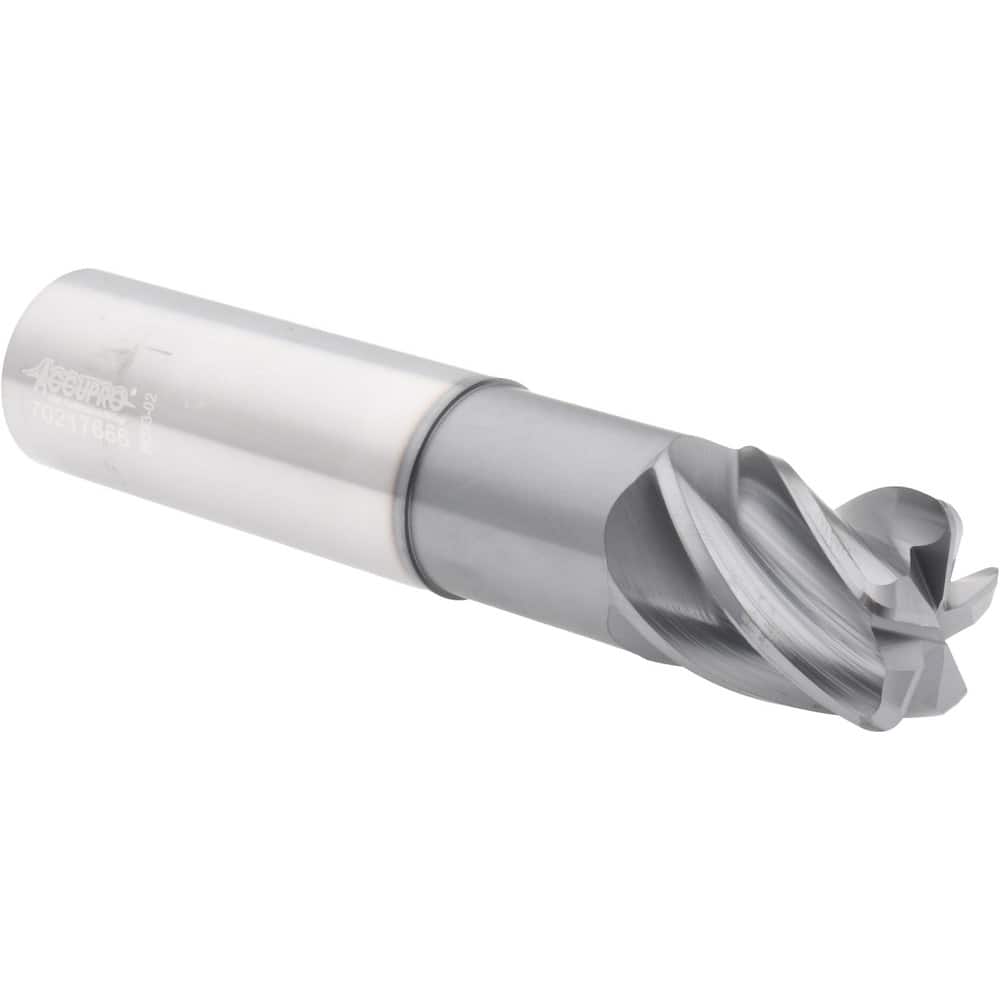

Corner Radius End Mill: 1″ Dia, 1-1/4″ LOC, 1/8″ Radius, 5 Flutes, Solid Carbide 5″ OAL, 1″ Shank Dia, Variable ° Helix, AlTiN Coated, Corner Radius End, Centercutting
Item #: 70217666
Brand: Accupro
Model #: 546N1000-125C11
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 1-1/4 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/8 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | Variable |
| Centercutting | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1 |
| Neck Diameter (Decimal Inch) | 0.9000 |
| Reach Length (Inch) | 2-3/8 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | +0.0001/-0. 0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
