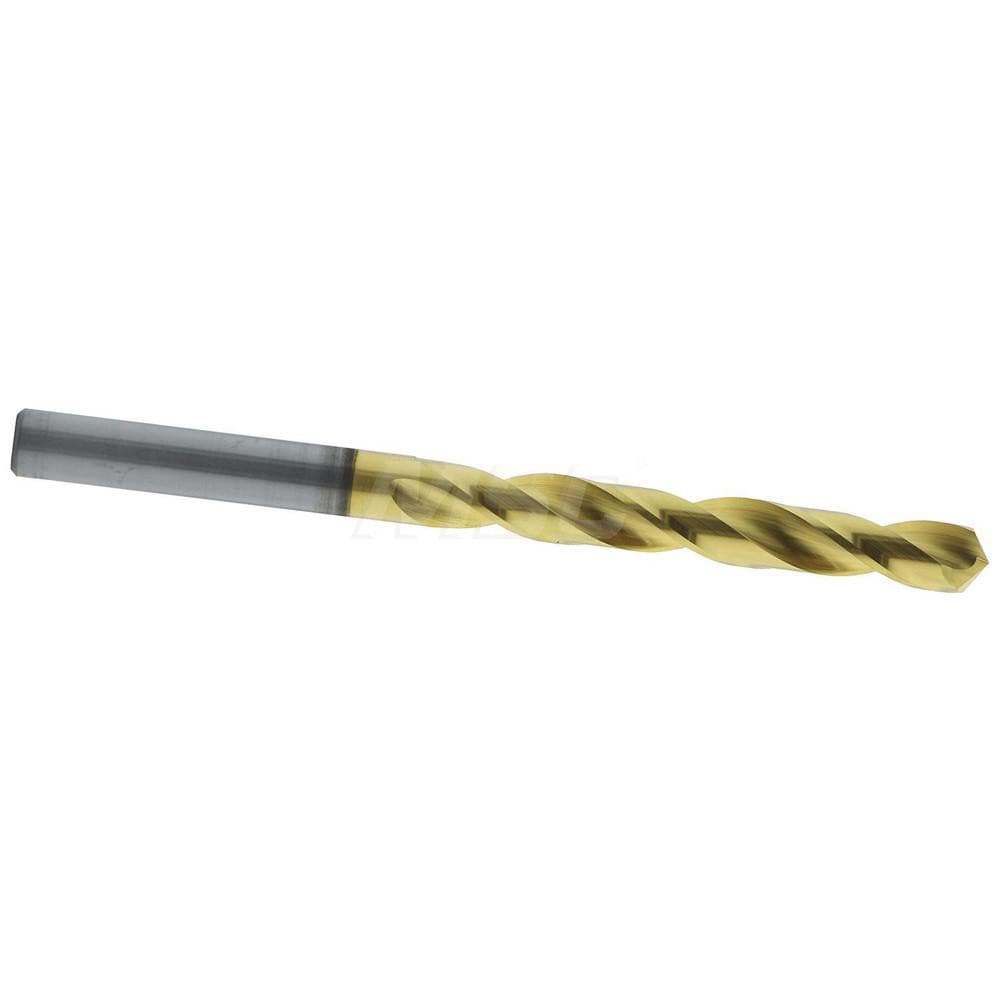

Jobber Drill: 15/64" Dia, 118 deg Point, Solid Carbide
Item #: 16691784
Brand: Hertel
Model #: 16691784
Product Specifications
| Drill Bit Size (Inch) | 15/64 |
| Drill Bit Size (Decimal Inch) | 0.2344 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Stainless Steel; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Spiral Type | Regular |
| Flute Length (mm) | 50.80 |
| Flute Length (Decimal Inch) | 2.0000 |
| Series | 450 |
| Shank Diameter (Inch) | 15/64 |
| Maximum Drilling Depth (Decimal Inch) | 3.0625 |
| Maximum Drilling Depth (Inch) | 3-1/16 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | C2 |
| UNSPSC Code | 23241634 |
