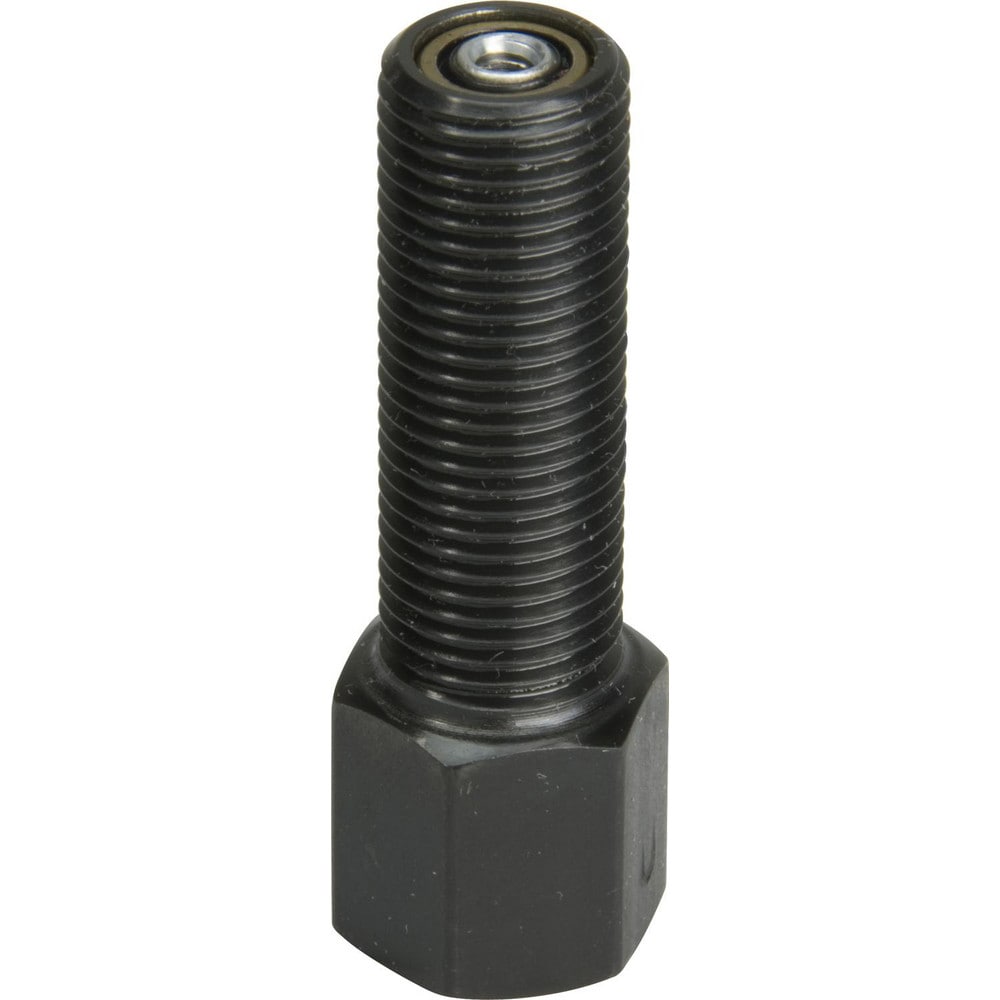

Compact Hydraulic Cylinders; Actuation: Single Acting; Rod Diameter (mm): 4.85; Body Material: Steel; Stroke Length (Decimal Inch): 0.5000; Maximum Working Pressure (Psi
Item #: 45149531
Brand: Enerpac
Model #: CST2131
Product Specifications
| Actuation | Single Acting |
| Rod Diameter (mm) | 4.85 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 0.5000 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | SAE #4 |
| Mount Type | Threaded |
| Bore Size (mm) | 7.95 |
| Retracted Length (Decimal Inch) | 2.03 |
| Extended Length (Inch) | 2.5500 |
| Load Capacity (Lb.) | 380 |
| UNSPSC Code | 27121602 |
