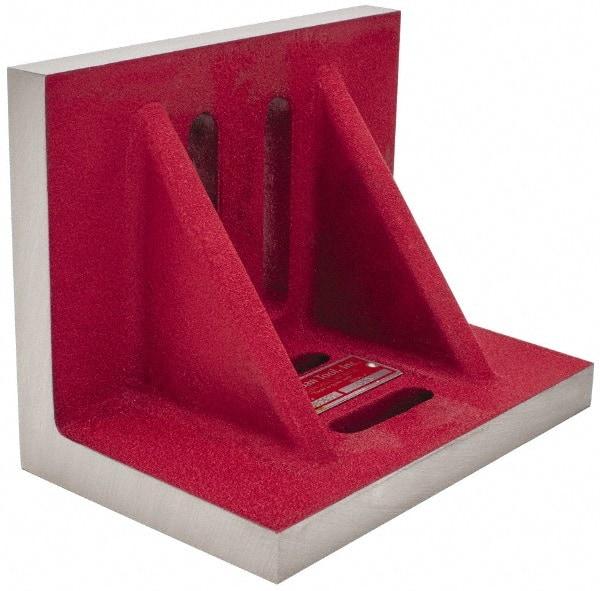

Suburban Tool - 8" Wide x 5" Deep x 6" High Cast Iron Machined Angle Plate - Standard Plate, Through-Slots on Surface, Double Web, 3/4" Thick, Single Plate
Item #: 70144464
Brand: Suburban Tool
Model #: SAW080605
Exact Tooling IR#: 04
Features and Benefits
Cast iron, also called semi-steel, is extremely strong and ideal for high-heat applications.
Machined angle plates are used for general machine shop and set-up work.
Slotted angle plates are designed with clamping slots for mounting, layout and inspection operations. They can be used as backing plates and constructed with varying spacing between slots and holes.
| Product Specifications | |
|---|---|
| Width (Inch) | 8 |
| Depth (Inch) | 5 |
| Height (Inch) | 6 |
| Material | Cast Iron |
| Finish Type | Machined |
| Plate Surface | Through-Slots |
| Plate Style | Standard |
| Plate Design | Double Web |
| Plate Thickness (Inch) | 3/4 |
| Number of Holes | 4 |
| T-Slot Size (Inch) | 9/16 |
| Web Thickness (Inch) | 5/8 |
| Parallelism (Decimal Inch) | 0.0020 per 6" |
| Squareness (Decimal Inch) | 0.0020 per 6" |
| Web to Edge (Inch) | 2 |
| Material Grade | Class 35-40 |
| Single or Pair | Single |
