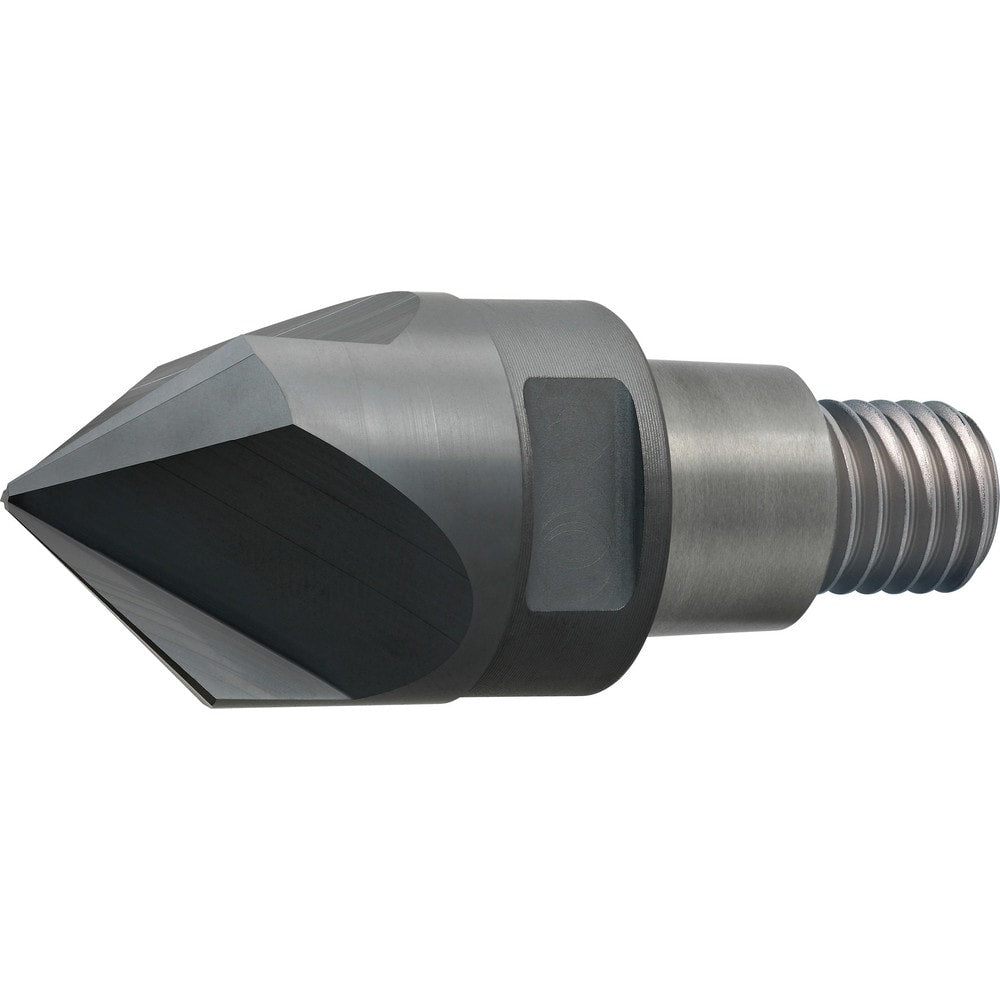

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 15.88; Mill Diameter (Inch): 5/8; Chamfer Width (mm): 7.190; Chamfer Width (Decimal Inch): 0.283; Chamfer Angle: 54.000; Length of Cut (mm): 7.1900; Number Of Flutes: 3
Item #: 29383841
Brand: Mitsubishi
Model #: 10528167
Product Specifications
| Mill Diameter (mm) | 15.88 |
| Mill Diameter (Inch) | 5/8 |
| Chamfer Width (mm) | 7.190 |
| Chamfer Width (Decimal Inch) | 0.283 |
| Chamfer Angle | 54.000 |
| Length of Cut (mm) | 7.1900 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 24.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 0.9449 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Centercutting | No |
| Connection Type | iMX16 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 4.5 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2830 |
| UNSPSC Code | 27112803 |
