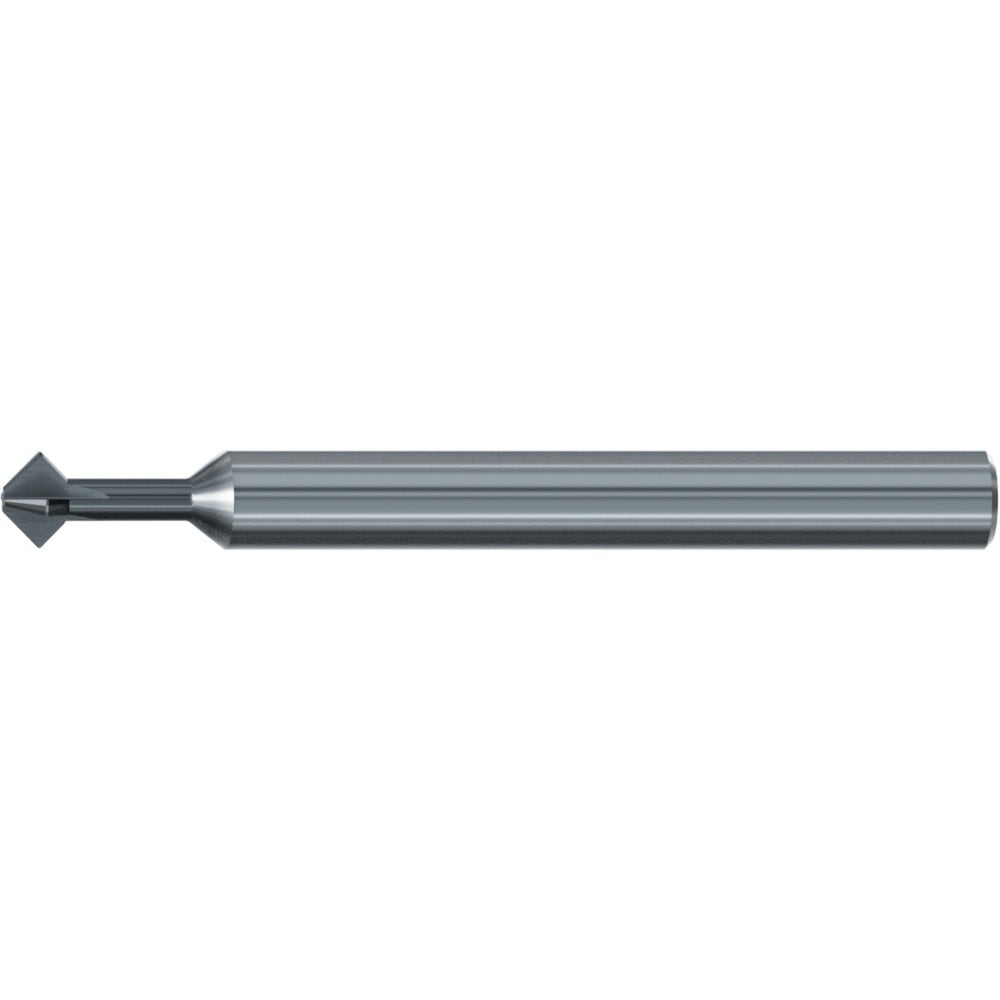

Back Chamfers; Cutter Head Diameter (Decimal Inch): 0.2244; Cutter Head Diameter (mm): 5.70; Chamfer Width (Decimal Inch): 0.130; Chamfer Width (mm): 3.300; Flat Width (mm): 2.8
Item #: 41010414
Brand: Emuge
Model #: 1700L.05730A
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.2244 |
| Cutter Head Diameter (mm) | 5.70 |
| Chamfer Width (Decimal Inch) | 0.130 |
| Chamfer Width (mm) | 3.300 |
| Flat Width (mm) | 2.8 |
| Flat Width (Decimal Inch) | 0.1102 |
| Tool Material | Carbide |
| Cutting Direction | Right Hand |
| Long Length Tool | No |
| Neck Diameter (mm) | 2.800 |
| Neck Diameter (Decimal Inch) | 0.1102 |
| Cutter Head to Shank Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 6.000 |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Inch) | 3/32 |
| Series | 1700L |
| Overall Length (mm) | 68.0000 |
| End Type | Burr |
| Tool Application | Deburring |
| Tool Performance | High Performance |
| Coating/Finish | AlCr |
| Number Of Flutes | 4 |
| Number Of Flutes | 4 |
| Included Angle Degree | 90 degrees |
| UNSPSC Code | 23241600 |
