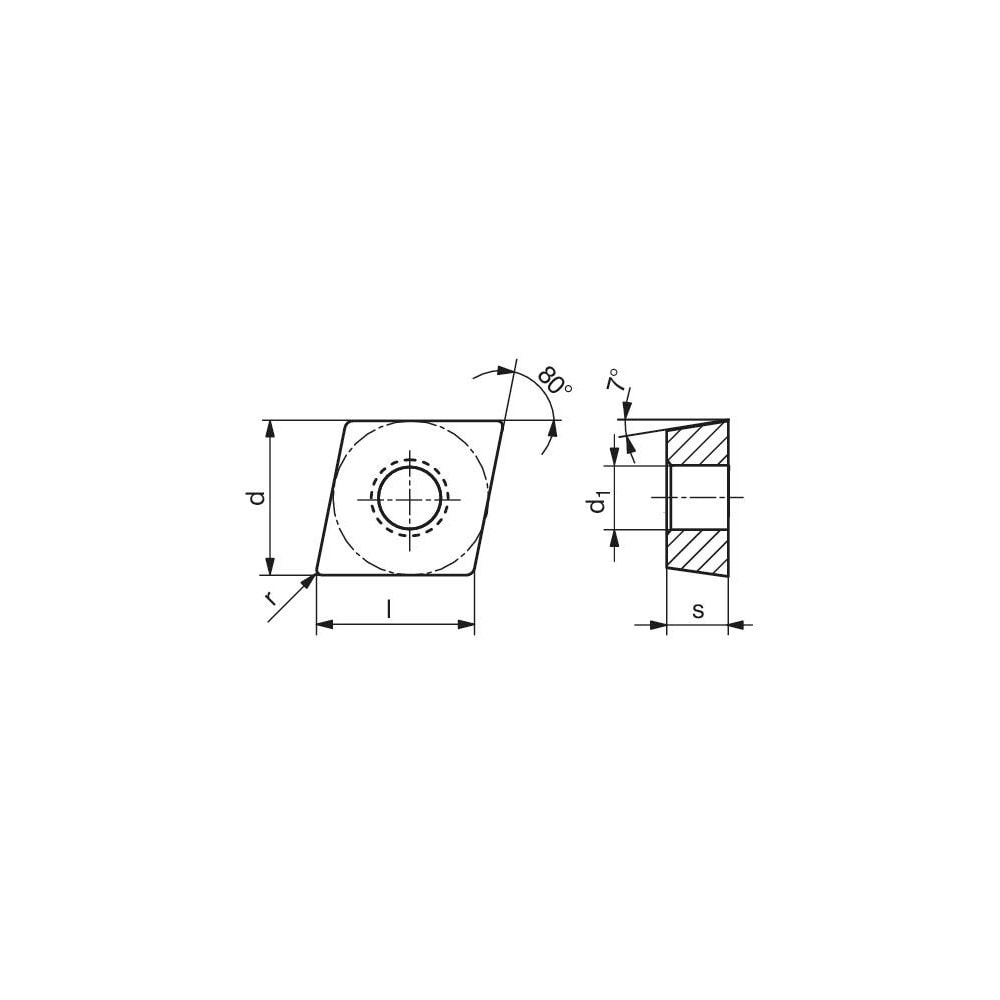

Turning Insert: CCMT21.51ENM25 CTPM125, Carbide
Item #: 26237198
Brand: Ceratizit
Model #: 75210204
Product Specifications
| ANSI Insert Code | CCMT21.51 |
| ISO Insert Code | CCMT060204 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | CTPM125 |
| Coating/Finish | TiAlTaN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | CCMT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | CCMT 060204EN-M25 CTPM125 |
| Chip Breaker | M25 |
| ANSI Size Code | 21.51 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
