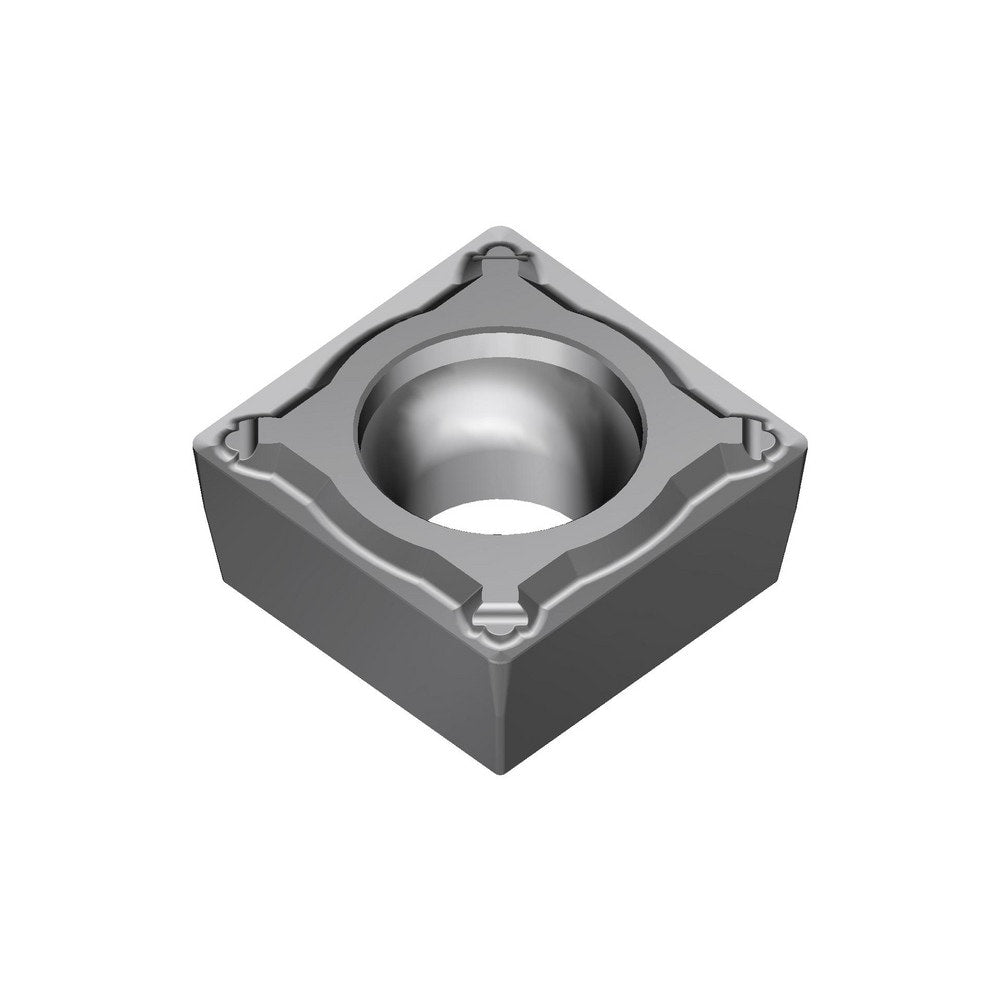

Turning Insert: SCMT432EFP T1500A, Cermet
Item #: 23223191
Brand: Sumitomo
Model #: 19JTANE
Product Specifications
| ANSI Insert Code | SCMT432 |
| ISO Insert Code | SCMT |
| Relief Angle | 7 |
| Insert Style | SCMT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 90 |
| Manufacturer Grade | T1500A |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | T1500A |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Cermet |
| Insert Shape | S - Square |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Hole Diameter (Decimal Inch) | 0.2166 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material Code | P; K; M |
| Chip Breaker | EFP |
| ANSI Size Code | 432 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
