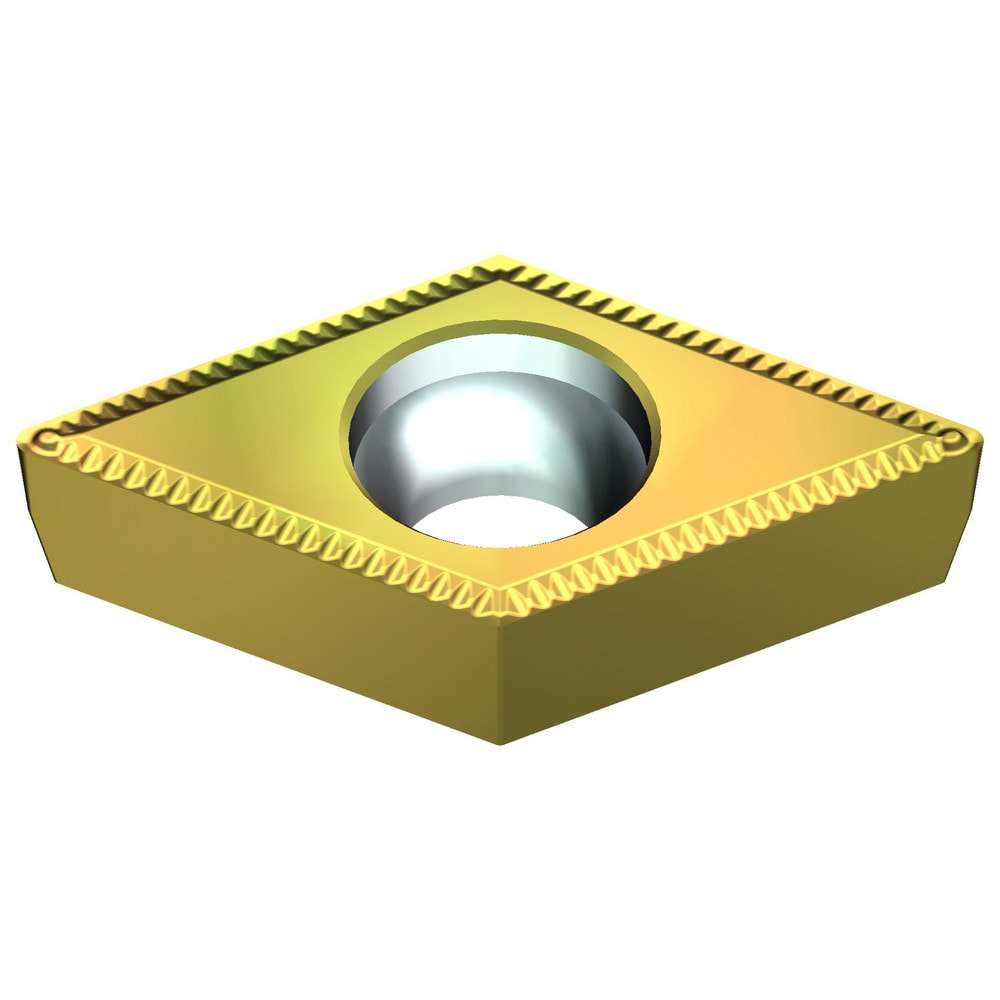

Turning Insert: DCMT21505EFB T2500Z, Cermet
Item #: 23222318
Brand: Sumitomo
Model #: 19U5CJK
Product Specifications
| ANSI Insert Code | DCMT21.50.5 |
| ISO Insert Code | DCMT |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | T2500Z |
| Coating/Finish | AlN |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | T2500Z |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Cermet |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Hole Diameter (Decimal Inch) | 0.1103 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3031 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | P; K |
| Chip Breaker | EFB |
| ANSI Size Code | 21.50.5 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.50.5 |
