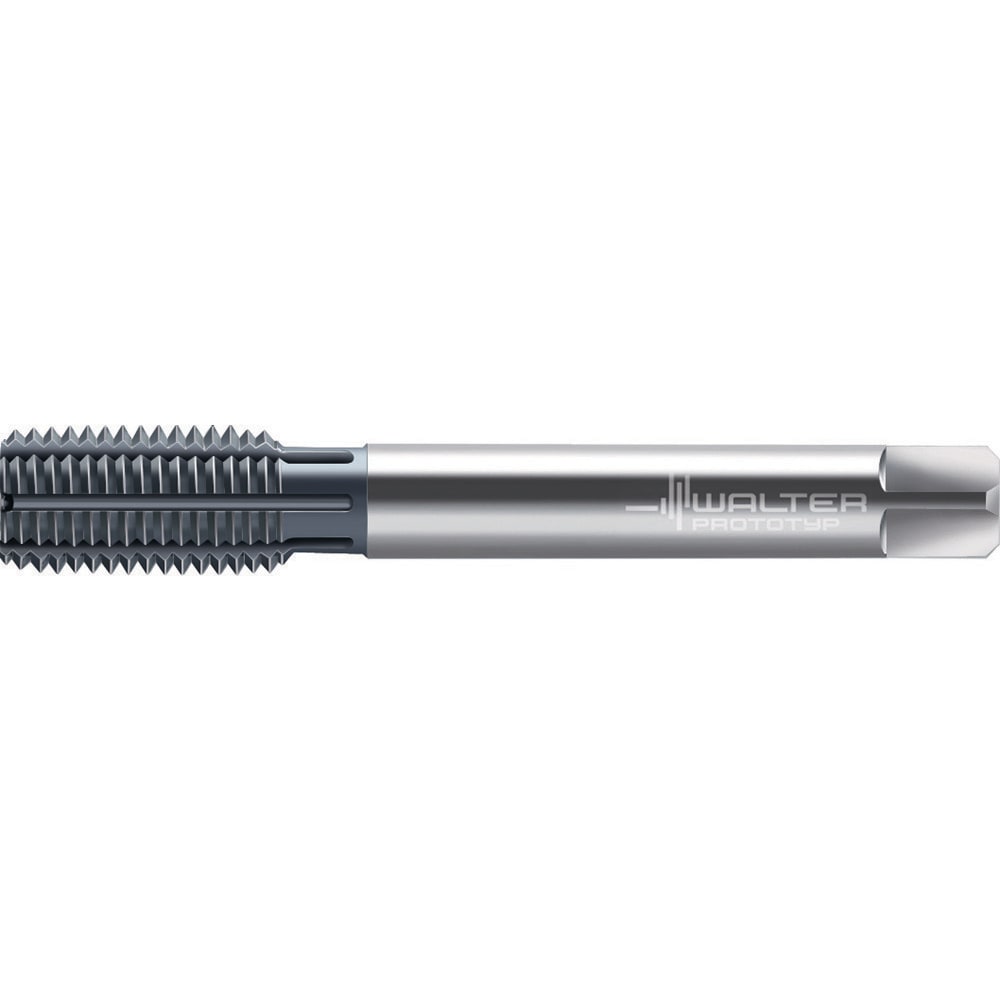

Thread Forming Tap: MF12x1.25 Metric Fine, 6HX Class of Fit, Semi-Bottoming Chamfer, High-Speed Steel-E-PM, AlCrN Finish
Item #: 55403125
Brand: Walter-Prototyp
Model #: 7958126
Product Specifications
| Thread Size (mm) | MF12x1.25 |
| Thread Standard | Metric Fine |
| Chamfer | Semi-Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E-PM |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Length (mm) | 10.00 |
| Application | Threading |
| Series | TC430 |
| Tapping Depth (Decimal Inch) | 2.8740 |
| Tapping Depth (mm) | 73.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 7.00 |
| Number Of Flutes | 8 |
| UNSPSC Code | 23241600 |
| Thread Size (mm) | MF12x1.25 |
| Thread Standard | Metric Fine |
| Chamfer | Semi-Bottoming |
| Chamfered Threads | 2-3P |
| Material | High-Speed Steel-E-PM |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.0000 |
| Thread Direction | Right Hand |
| Thread Length (Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Square Length (Decimal Inch) | 0.3937 |
| Square Length (mm) | 10.00 |
| Application | Threading |
| Series | TC430 |
| Tapping Depth (Decimal Inch) | 2.8740 |
| Tapping Depth (mm) | 73.00 |
| Square Size (Decimal Inch) | 0.2756 |
| Square Size (mm) | 7.00 |
| Number Of Flutes | 8 |
| UNSPSC Code | 23241600 |
| MSC Part # | 55403125 |
| Mfr Part # | 7958126 |
| Country of Origin Country of Origin is subject to change | Germany |
