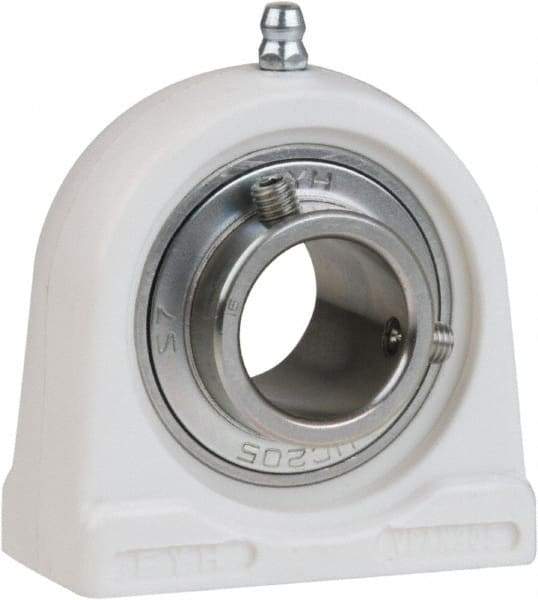

Value Collection - 5/8" ID, 2-7/8" OAL x 2-19/32" OAH Tapped Base - 1,495 Lb Static Cap, 2,877 Lb Dyn Cap, 2" Btw Mnt Hole Ctrs, 1-5/16" Base-to-Ctr Ht, Thermoplastic
Item #: 69973006
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Tapped Base |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Inside Diameter (Inch) | 5/8 |
| Width (Decimal Inch) | 1.3438 |
| Overall Length (Inch) | 2-7/8 |
| Overall Length (Decimal Inch) | 2.8750 |
| Overall Height (Inch) | 2-19/32 |
| Overall Height (Decimal Inch) | 2.5938 |
| Static Load Capacity (Pounds) | 1495.00 |
| Dynamic Load Capacity (Pounds) | 2877 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.0000 |
| Distance Between Mounting Hole Centers (Inch) | 2 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 1.3125 |
| Distance Between Base And Center (Inch) | 1-5/16 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
