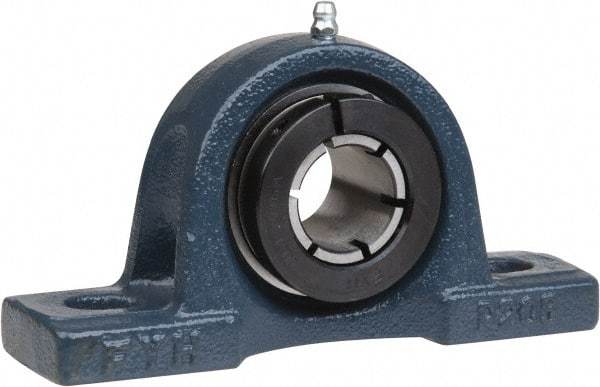

Value Collection - 1-1/4" ID, 6-1/2" OAL x 3-5/16" OAH Pillow Block - 2,540 Lb Static Cap, 4,383 Lb Dyn Cap, 4-3/4" Btw Mnt Hole Ctrs, 1-11/16" Base-to-Ctr Ht, Cast Iron
Item #: 69972826
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Pillow Block |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Decimal Inch) | 1.8750 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Overall Height (Inch) | 3-5/16 |
| Overall Height (Decimal Inch) | 3.3125 |
| Static Load Capacity (Pounds) | 2540.00 |
| Dynamic Load Capacity (Pounds) | 4383 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 4.7500 |
| Distance Between Mounting Hole Centers (Inch) | 4-3/4 |
| Material | Cast Iron housing with Chrome Carbon Steel Bearings |
| Distance Between Base And Center (Decimal Inch) | 1.6875 |
| Distance Between Base And Center (Inch) | 1-11/16 |
| Lock Type | Concentric |
| Bolt Size (Inch) | 1/2 |
| Bolt Size (Decimal Inch) | 0.5000 |
