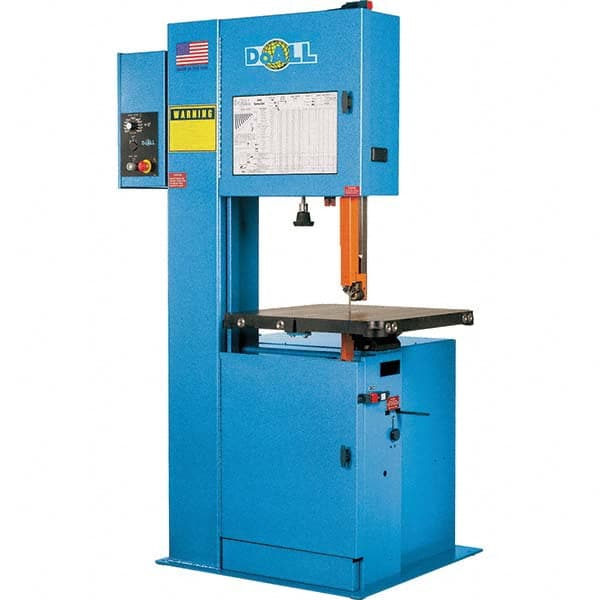

Vertical Bandsaw: Inverter Drive, 20″ Throat Capacity, 13″ Height Capacity 3 Phase, 208 230 & 460V, 3 hp, 26″ Table Length, 26″ Table Width
Item #: 69940252
Brand: DoALL
Model #: 2013-V3
Product Specifications
| Drive Type | Inverter Drive |
| Throat Capacity (Decimal Inch) | 20.0000 |
| Throat Capacity (Inch) | 20 |
| Throat Depth (Inch) | 20 |
| Height Capacity (Inch) | 13 |
| Phase | 3 |
| Horsepower | 3.00 |
| Minimum Blade Speed | 9 m/min |
| Maximum Blade Speed | 1680 m/min |
| Blade Width (Inch - 0 Decimals) | 1/8 to1 |
| Blade Length (Feet) | 12.83 |
| Blade Thickness (Inch) | 1.0000 |
| Blade Wheel Diameter (Inch) | 20 |
| Coolant System | Yes |
| Floor to Table Height (Inch) | 39 |
| Table Length (Inch) | 26 |
| Table Width (Inch) | 26 |
| Table Tilt Left (Degrees) | 45 |
| Table Tilt Right (Degrees) | 45 |
| Table Feed Operation | Fixed |
| Voltage | 208; 460; 230 |
| Base Width (Inch) | 45 |
| Base Depth (Inch) | 54 |
| Overall Height (Inch) | 82 |
| Overall Depth (Inch) | 45 |
| Overall Length (Inch) | 54 |
| Includes | Table Tilt to 45 Degrees Negative - 10 Degrees Positive; Chip Blower (Plant Air Required); Manual Band Tension with Indicator; Variable Frequency Band Drive; Chip Box; Band Wheel Brush; Operation & Parts Manuals On USB Stick; Operator Controls Mounted on Column; Saw Blade Guards; Post Elevating Hand Wheel; Band Door Interlocks; Upper Wheel Adjustment 3 in; (1) Complimentary Doall Bi Metal Saw Blade; One Set of Steel Guide Inserts for Bands 1/4 in, 3/8 in, 1/2 in; 20 in Aluminum Bandwheels with Crowned Rubber Tires; Insert Setting Gages with Wrench & Trunnion Wrench; Work Light; One Set of High Speed, Insert Type Guide Blocks for Bands 1/8 to 1/2 in; Recommended Job Selector |
| Blade Speeds (SFPM) | 30 to 5500 |
| Warranty | 1 Year |
| Maximum Blade Working Height | 13 |
| Product Service Code | 3405 |
