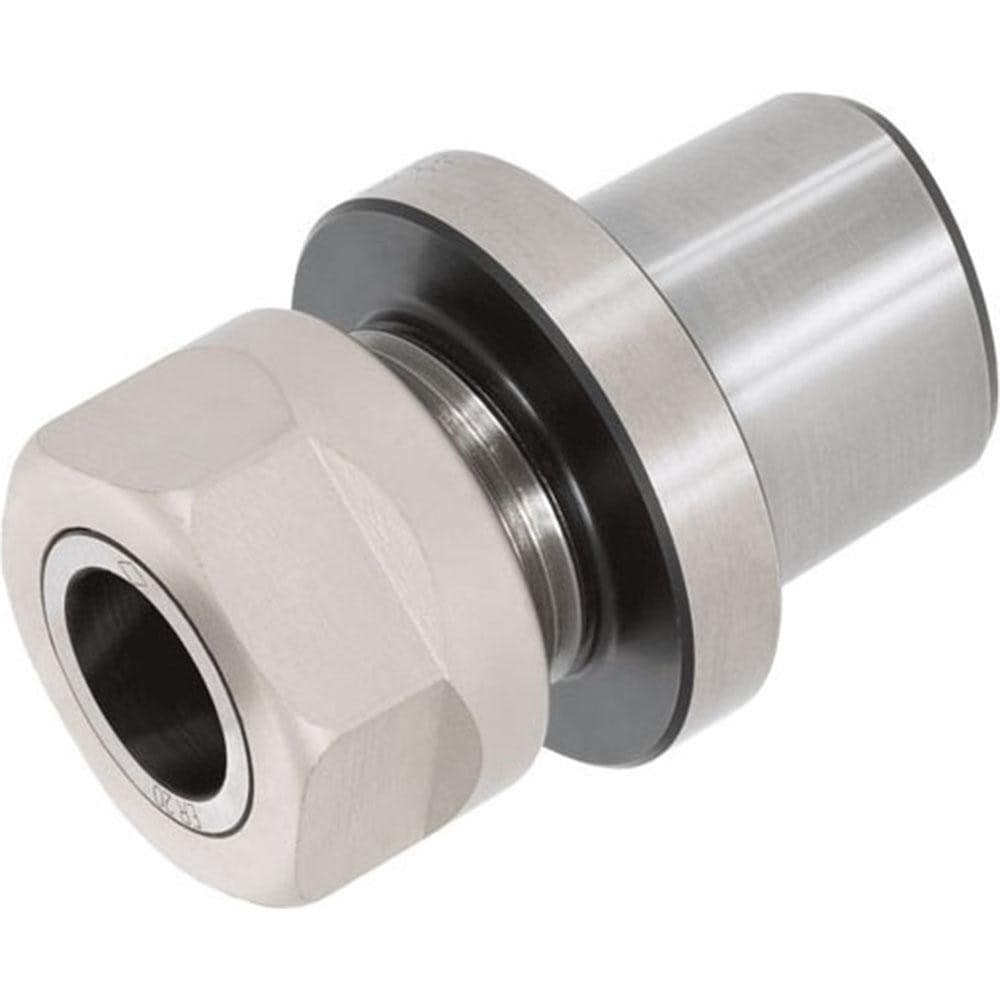

Collet Chuck: 2.00 to 20.00 mm Capacity, Full Grip Collet, 80.00 mm Shank Dia, Modular Connection Shank, Dual Contact
Item #: 33989450
Brand: Tungaloy
Model #: 4561520
Product Specifications
| Collet System | Full Grip |
| Collet Series | ER32 |
| Shank Type | Modular Connection |
| Modular Connection Size | C8 |
| Projection (mm) | 160.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Overall Length (mm) | 160 |
| Actuator Type | Wrench |
| Dual Contact | Yes |
| Nose Diameter (Mm) ( - 2 Decimals) | 50 |
| Shank Diameter (mm) | 80.00 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 50.00 |
| UNSPSC Code | 27112808 |
