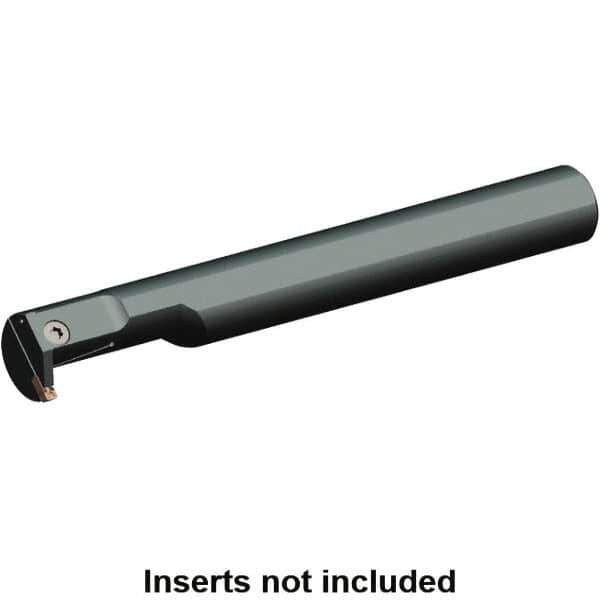

Kennametal - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-EVE Indexable Boring Bar - 64mm Max Bore Depth, EG0400M04P04 Insert, Clamp Holding Method
Item #: 69571891
Brand: Kennametal
Model #: 5954284
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5750 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 64.00 |
| Maximum Bore Depth (Decimal Inch) | 2.5190 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8430 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Insert Compatibility | EG0400M04P04 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.2590 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8430 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8660 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 6.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
