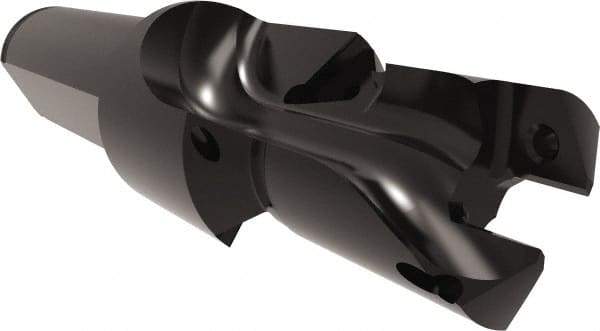

Allied Machine and Engineering - 17 to 18mm Diam, Straight Shank, 19.05mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 110204 Insert, 102mm OAL
Item #: 69286219
Brand: Allied Machine and Engineering
Model #: 60117C45-075F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7086 |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Body Shank Diameter (mm) | 19.05 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 110204 |
| Body Diameter (mm) | 25.40 |
| Body Diameter (Decimal Inch) | 1.0000 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0156 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 51.59 |
| Shank Length (Decimal Inch) | 2.0313 |
| Through Coolant | Through Coolant |
| Series | 17; GEN3SYS; GEN3SYS XT |
