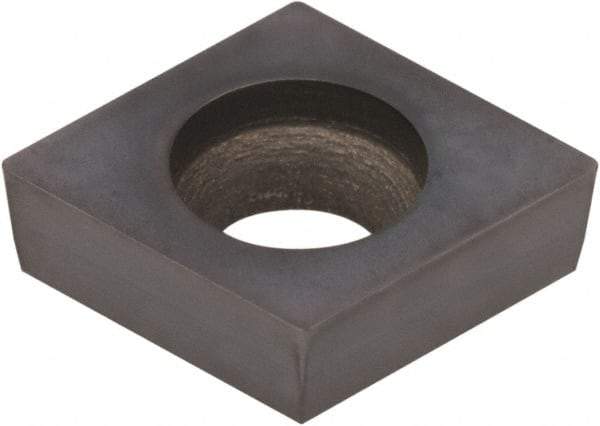

Kennametal - CCGW32.52 MT Grade KB5630 PCBN Turning Insert - AlTiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 69258374
Brand: Kennametal
Model #: 3747234
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 32.52 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KB5630 |
| Coating | AlTiN |
| Chip Breaker | MT |
| Hole Diameter (Decimal Inch) | 0.8000 |
| ISO Number | CCGW09T308S01015MT |
| Relief Angle | 7 |
| Manufacturers Catalog Number | CCGW3252S0415MT |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
