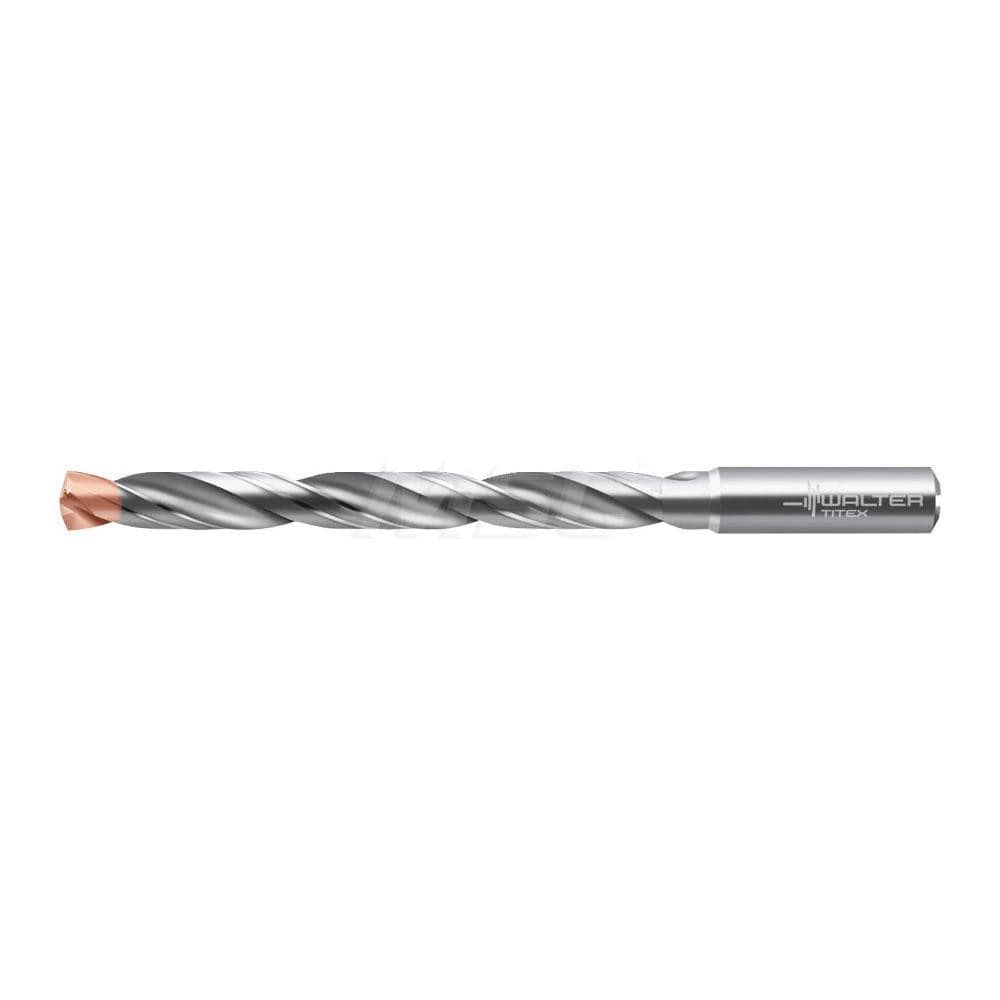

Jobber Drill: 27/64" Dia, 140 deg Point, Solid Carbide
Item #: 66347691
Brand: Walter-Titex
Model #: 5834647
Product Specifications
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Specification Number | DIN 6535HA |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 163.00 |
| Overall Length (Decimal Inch) | 6.4173 |
| Spiral Type | Regular |
| Flute Length (mm) | 114.00 |
| Flute Length (Decimal Inch) | 4.4882 |
| Proprietary Coating/Finish | DPL (TiAlN (AlCrN)) |
| Series | A6489DPP |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 12 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (mm) | 45 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.95 |
| Drill Point Length (Decimal Inch) | 0.0768 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Material Grade | K30F |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 27/64 |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Cast Iron; Steel; Hardened Materials |
| Specification Number | DIN 6535HA |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 163.00 |
| Overall Length (Decimal Inch) | 6.4173 |
| Spiral Type | Regular |
| Flute Length (mm) | 114.00 |
| Flute Length (Decimal Inch) | 4.4882 |
| Proprietary Coating/Finish | DPL (TiAlN (AlCrN)) |
| Series | A6489DPP |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 12 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (mm) | 45 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.95 |
| Drill Point Length (Decimal Inch) | 0.0768 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Material Grade | K30F |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 66347691 |
| Mfr Part # | 5834647 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
