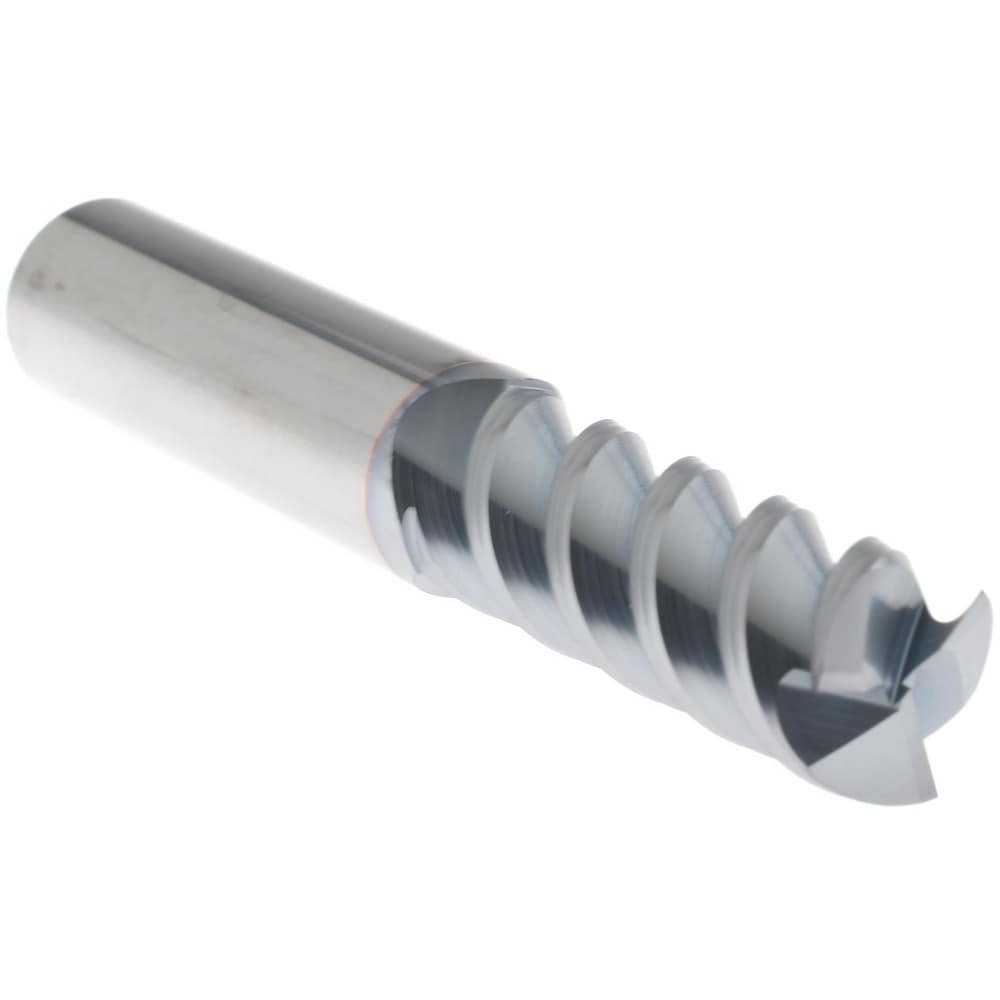

Square End Mill: 15/32" Dia, 1" LOC, 3 Flute, Solid Carbide
Item #: 56210685
Brand: Accupro
Model #: 2500405
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4688 |
| Mill Diameter (Inch) | 15/32 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | TiCN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 60 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Coating/Finish | TiCN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| Series | ASQSC3-TC-CC-60H |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.4688 |
| Mill Diameter (Inch) | 15/32 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Single Or Double End | Single |
| Coating/Finish Family | TiCN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 60 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Coating/Finish | TiCN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Type | Regular |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| Series | ASQSC3-TC-CC-60H |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 56210685 |
| Mfr Part # | 2500405 |
| Big Book Page # | 512 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
