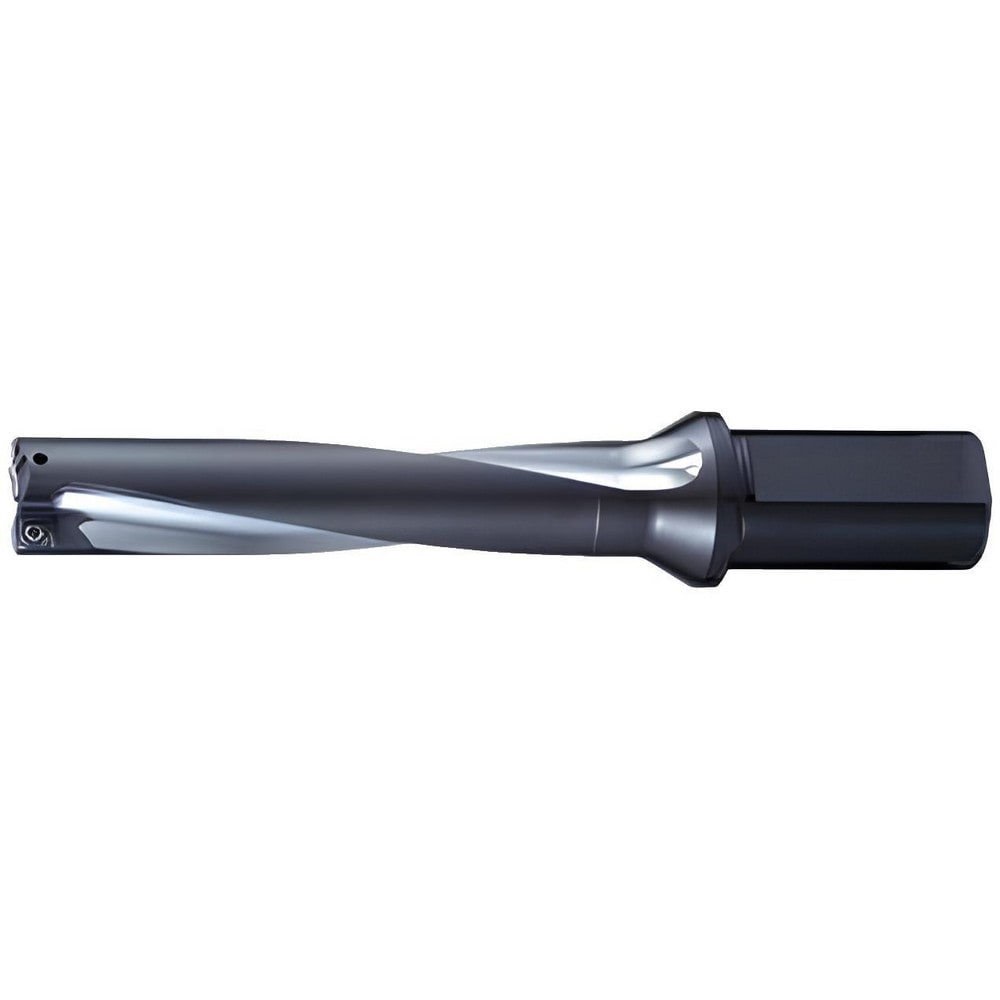

Indexable Insert Drill: P3D1062FS125A08, 1-1/16" Max Dia, 3xD, 1-1/4" Shank Dia
Item #: 55897284
Brand: OSG
Model #: 52503003
Product Specifications
| Compatible Drill Style | P3D |
| Maximum Drill Diameter (Inch) | 1-1/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.0625 |
| Maximum Drill Depth (Decimal Inch) | 3.1880 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 083508 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.4550 |
| Series | 52503 |
| Flute Length (Decimal Inch) | 3.7790 |
| Body Length (Decimal Inch) | 4.0930 |
| Shank Length (Decimal Inch) | 2.3620 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 8.36x8.36 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT083508 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| Compatible Drill Style | P3D |
| Maximum Drill Diameter (Inch) | 1-1/16 |
| Maximum Drill Diameter (Decimal Inch) | 1.0625 |
| Maximum Drill Depth (Decimal Inch) | 3.1880 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | XCMT |
| Compatible Insert Size Code | 083508 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 6.4550 |
| Series | 52503 |
| Flute Length (Decimal Inch) | 3.7790 |
| Body Length (Decimal Inch) | 4.0930 |
| Shank Length (Decimal Inch) | 2.3620 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 8.36x8.36 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XCMT083508 |
| Insert Lock Screw | 7808135 |
| Coolant Through | Yes |
| MSC Part # | 55897284 |
| Mfr Part # | 52503003 |
| Country of Origin Country of Origin is subject to change | Japan |
