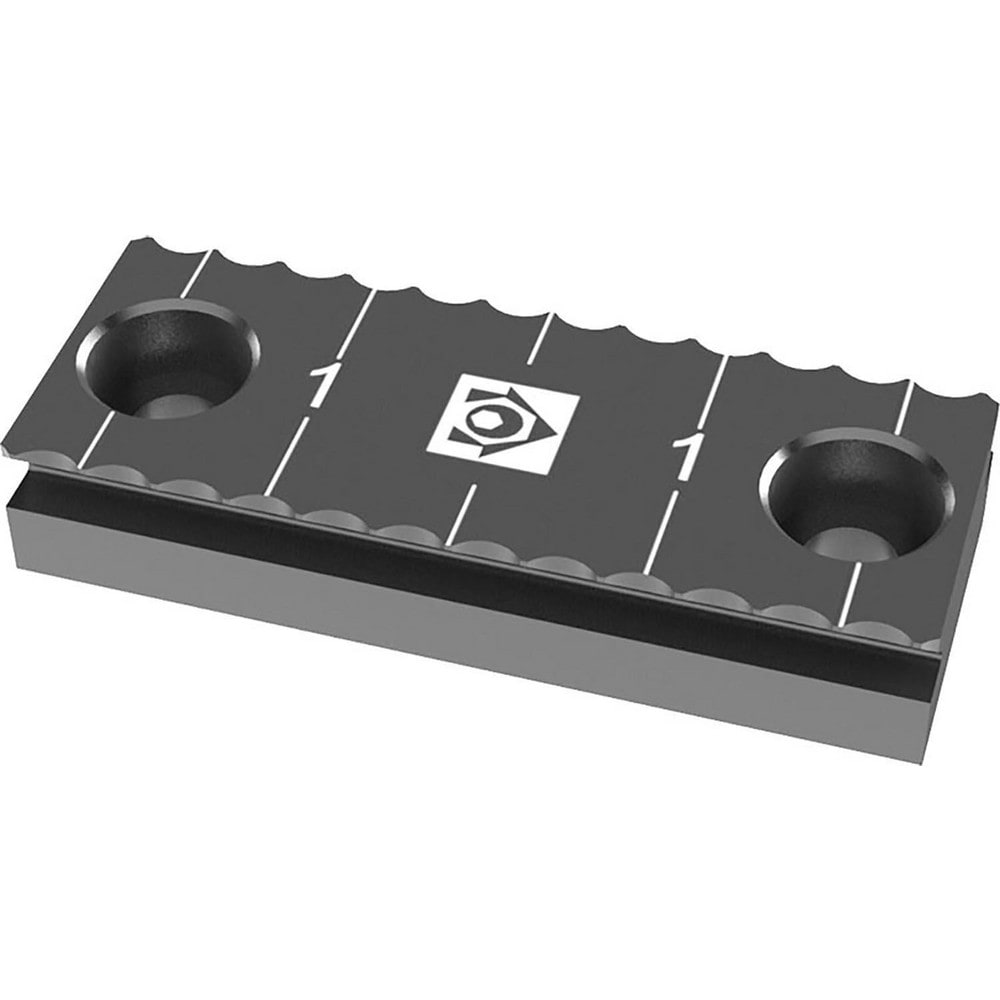

Vise Jaw Grips; Edge Type: Serrated; Maximum Grip Height (mm): 4.06; Maximum Grip Height (Inch): 0.1600; Overall Width (mm): 19.0500; Overall Width (Decimal Inch - 4 Decimals): 0.7500; Minimum Grip Height (mm): 1.27; Minimum Grip Height (Inch): 0.0500; Ov
Item #: 16040917
Brand: Mitee-Bite
Model #: 33052
Product Specifications
| Edge Type | Serrated |
| Maximum Grip Height (mm) | 4.06 |
| Maximum Grip Height (Inch) | 0.1600 |
| Overall Width (mm) | 19.0500 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Minimum Grip Height (mm) | 1.27 |
| Minimum Grip Height (Inch) | 0.0500 |
| Overall Height (Decimal Inch - 4 Decimals) | 0.3670 |
| Overall Height (Mm - 5 Decimals) | 9.32000 |
| Material | S2 Steel |
| Series | Long Length |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5000 |
| Distance Between Mount Hole Centers (mm) | 38 |
| Finish | Black Oxide |
| Includes | (4) 10-32x1/2 SHCS; (4) M5x12mm SHCS |
| UNSPSC Code | 27112818 |
