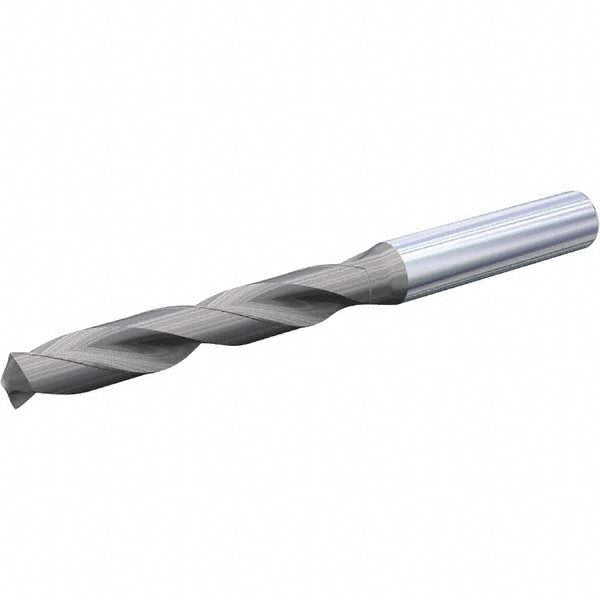

Jobber Drill: 11/32" Dia, 140 deg Point, Solid Carbide
Item #: 14965396
Brand: Kennametal
Model #: 6782542
Product Specifications
| Drill Bit Size (Inch) | 11/32 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 103.00 |
| Overall Length (Decimal Inch) | 4.0551 |
| Flute Length (mm) | 60.00 |
| Flute Length (Decimal Inch) | 2.3622 |
| Proprietary Coating/Finish | AlTiN;TiN |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (mm) | 9.52 |
| Maximum Drilling Depth (mm) | 48.70 |
| Shank Length (mm) | 40.5 |
| Drill Point Length (mm) | 1.87 |
| Shank Type | Straight |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| UNSPSC Code | 23241634 |
