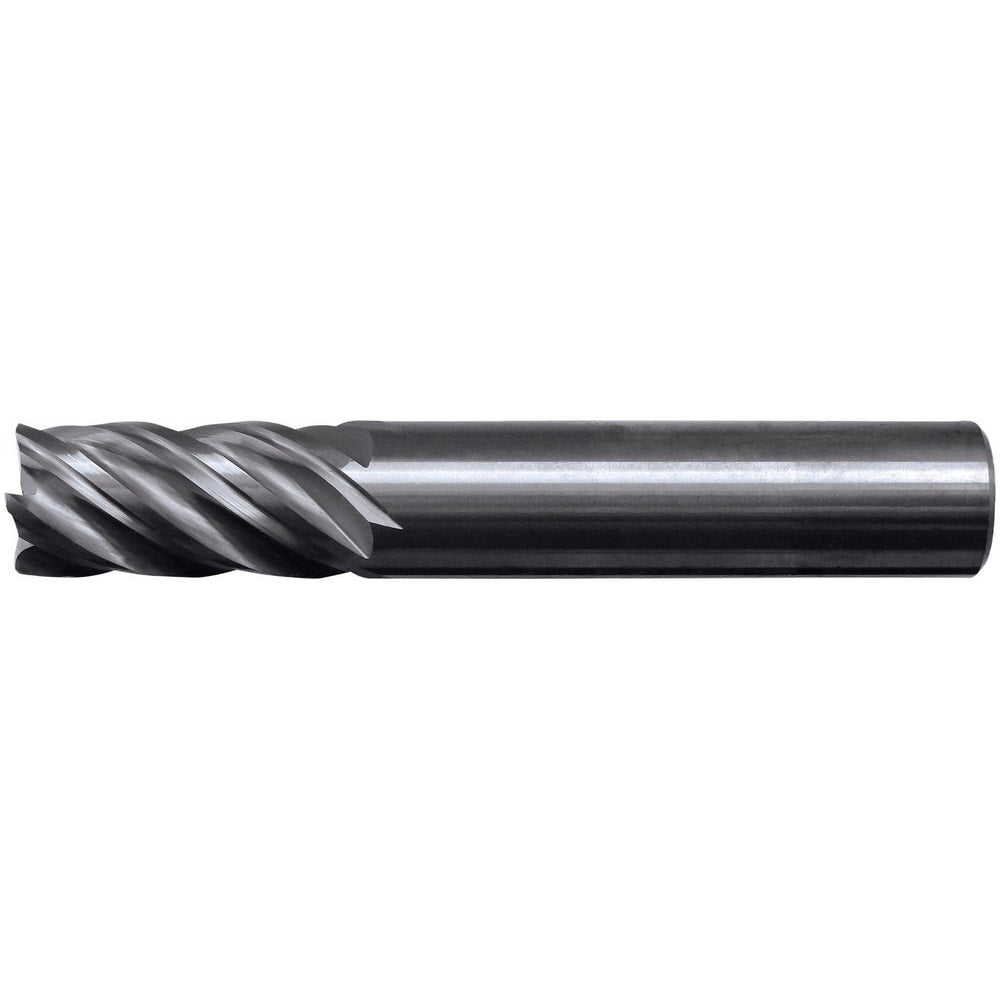

Corner Radius End Mill: 3/16" Dia, 3/8" LOC, 0.25 mm Radius, 5 Flute, Solid Carbide
Item #: 65046252
Brand: Cleveland
Model #: C60526
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (mm) | 4.76 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 9.52 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.25 |
| Overall Length (mm) | 50.80 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Stub |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (mm) | 4.76 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; High Temperature Alloy |
| Secondary Workpiece Material Code | S; M |
| Material Grade | Submicron |
| Series | CEM-V2-5R |
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (mm) | 4.76 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 9.52 |
| Length of Cut (Inch) | 3/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0100 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.25 |
| Overall Length (mm) | 50.80 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
| Length Type | Stub |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (mm) | 4.76 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; High Temperature Alloy |
| Secondary Workpiece Material Code | S; M |
| Material Grade | Submicron |
| Series | CEM-V2-5R |
| MSC Part # | 65046252 |
| Mfr Part # | C60526 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
