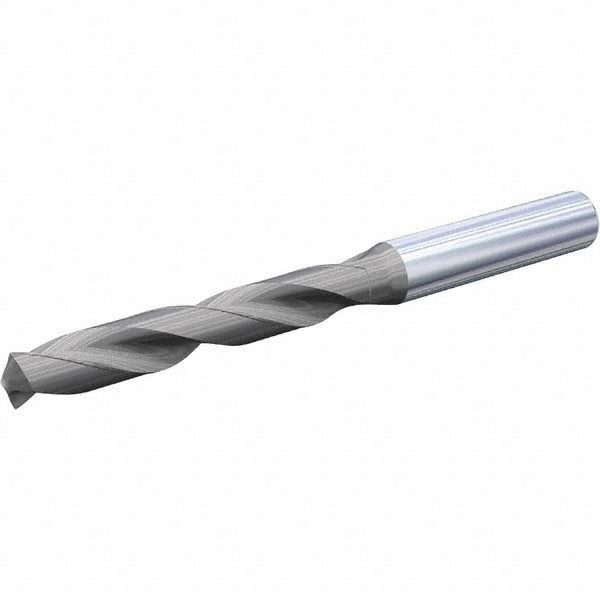

Jobber Drill: #21, 140 deg Point, Solid Carbide
Item #: 14965289
Brand: Kennametal
Model #: 6782509
Product Specifications
| Drill Bit Size (Wire) | #21 |
| Drill Bit Size (mm) | 4.04 |
| Drill Bit Size (Decimal Inch) | 0.1590 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (mm) | 35.00 |
| Flute Length (Decimal Inch) | 1.3780 |
| Proprietary Coating/Finish | AlTiN;TiN |
| Flute By Diameter Ratio | 7xD |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (mm) | 4.76 |
| Maximum Drilling Depth (mm) | 28.60 |
| Shank Length (mm) | 36.5 |
| Drill Point Length (mm) | 0.91 |
| Shank Type | Straight |
| Drill Bit Grade | KCP15B |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| UNSPSC Code | 23241634 |
