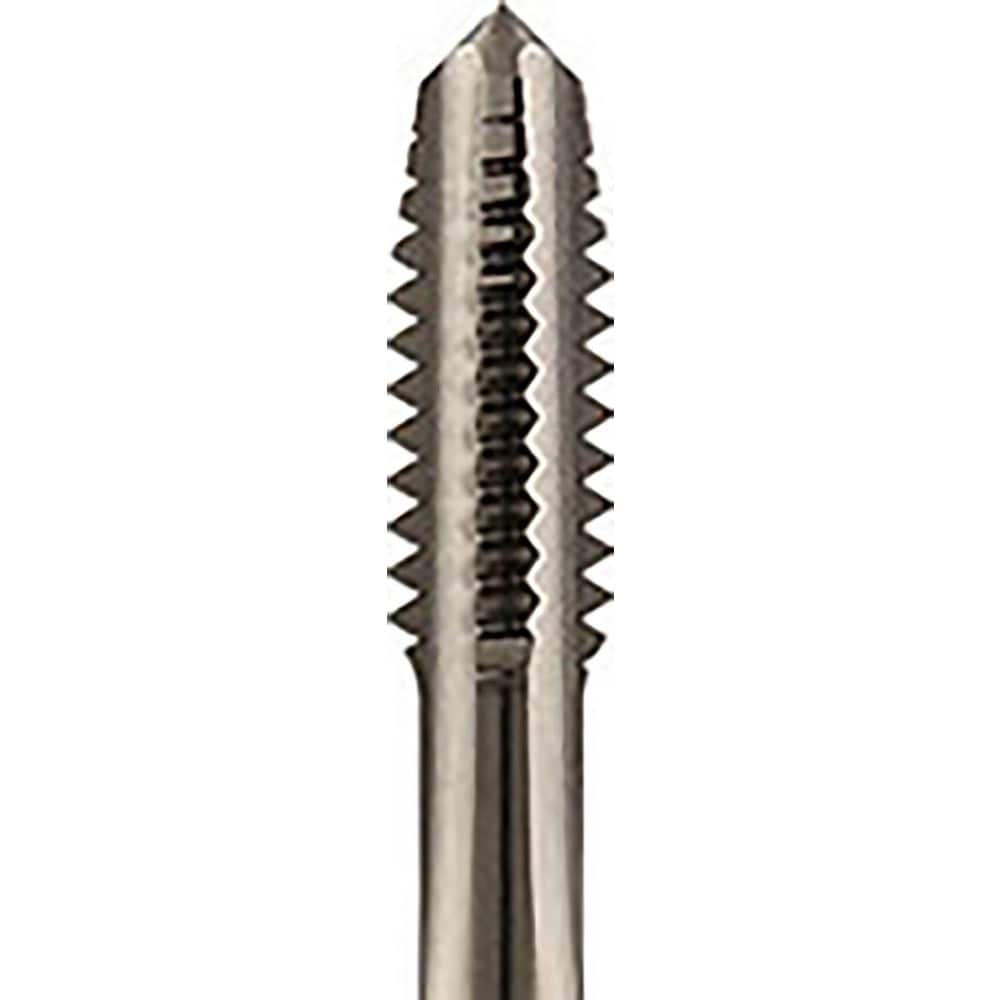

Straight Flute Tap: #10-32 UNF, 4 Flute, Plug Chamfer, 2B Class of Fit, Vanadium HSS, Bright/Uncoated Finish
Item #: 20378717
Brand: Yamawa
Model #: TSUNAJ3NEB5
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (Inch) | #10-32 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | Vanadium High-Speed Steel |
| Coating/Finish | Bright |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H3 |
| Number Of Flutes | 4 |
| Overall Length (Decimal Inch) | 2.7560 |
| Threads per Inch | 32 |
| Thread Pitch (mm) | 32.00 |
| Thread Length (Decimal Inch) | 0.5510 |
| Thread Depth (Decimal Inch) | 1.5350 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Brass; Iron; Plastic; Steel |
| Series | Z-PRO HT |
| Shank Length (Decimal Inch) | 1.2210 |
| UNSPSC Code | 23241600 |
