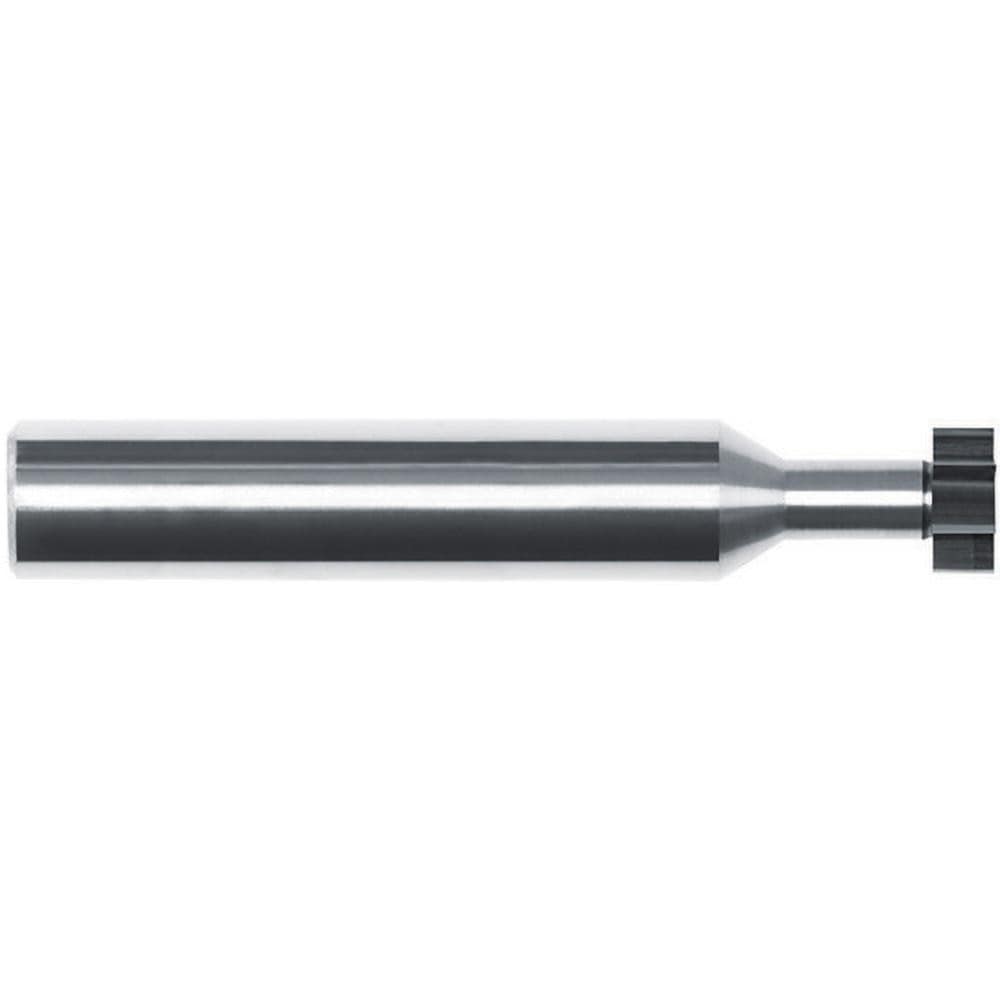

Woodruff Keyseat Cutter: 1/2" Cut Dia, 1/32" Cut Width, 1/2" Shank Dia, Straight Tooth
Item #: 66547597
Brand: Internal Tool
Model #: 76-1535
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 1/2 |
| Cutter Diameter (Decimal Inch) | 0.5000 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/32 |
| Cutting Width (Decimal Inch) | 0.0312 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Non-ISO |
| Primary Workpiece Material Code | N; O |
| Cutter Material Grade | Micrograin |
| Series | 76 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 1/2 |
| Cutter Diameter (Decimal Inch) | 0.5000 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/32 |
| Cutting Width (Decimal Inch) | 0.0312 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Non-ISO |
| Primary Workpiece Material Code | N; O |
| Cutter Material Grade | Micrograin |
| Series | 76 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 6 |
| UNSPSC Code | 23241631 |
| MSC Part # | 66547597 |
| Mfr Part # | 76-1535 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
