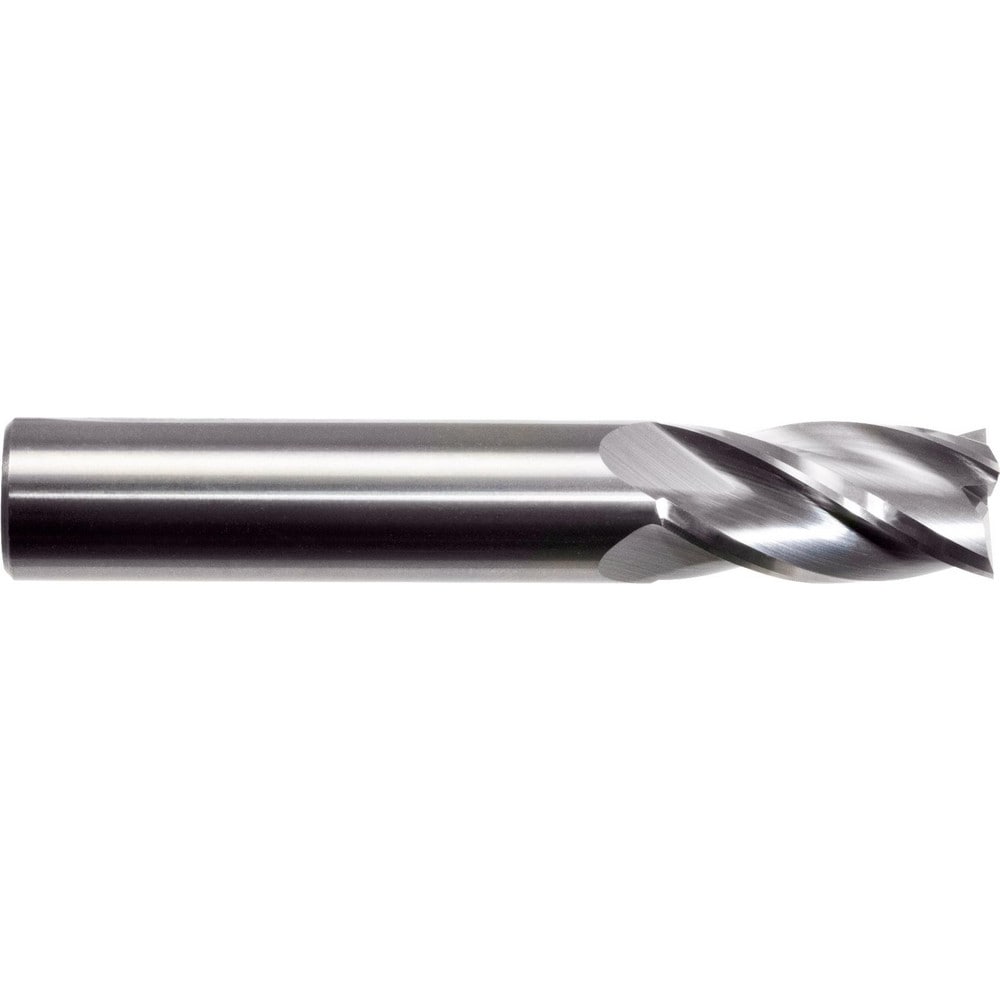

Corner Radius End Mill: 1/4" Dia, 3/4" LOC, 1.52 mm Radius, 4 Flute, Solid Carbide
Item #: 65047235
Brand: Cleveland
Model #: C61853
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (mm) | 6.35 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 19.05 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.52 |
| Overall Length (mm) | 63.50 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.35 |
| Primary Workpiece Material | Non-Ferrous Metal; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | Submicron |
| Series | CEM-SE-4 |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (mm) | 6.35 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 19.05 |
| Length of Cut (Inch) | 3/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.52 |
| Overall Length (mm) | 63.50 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 2.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Shank Diameter (mm) | 6.35 |
| Primary Workpiece Material | Non-Ferrous Metal; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | Submicron |
| Series | CEM-SE-4 |
| MSC Part # | 65047235 |
| Mfr Part # | C61853 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
