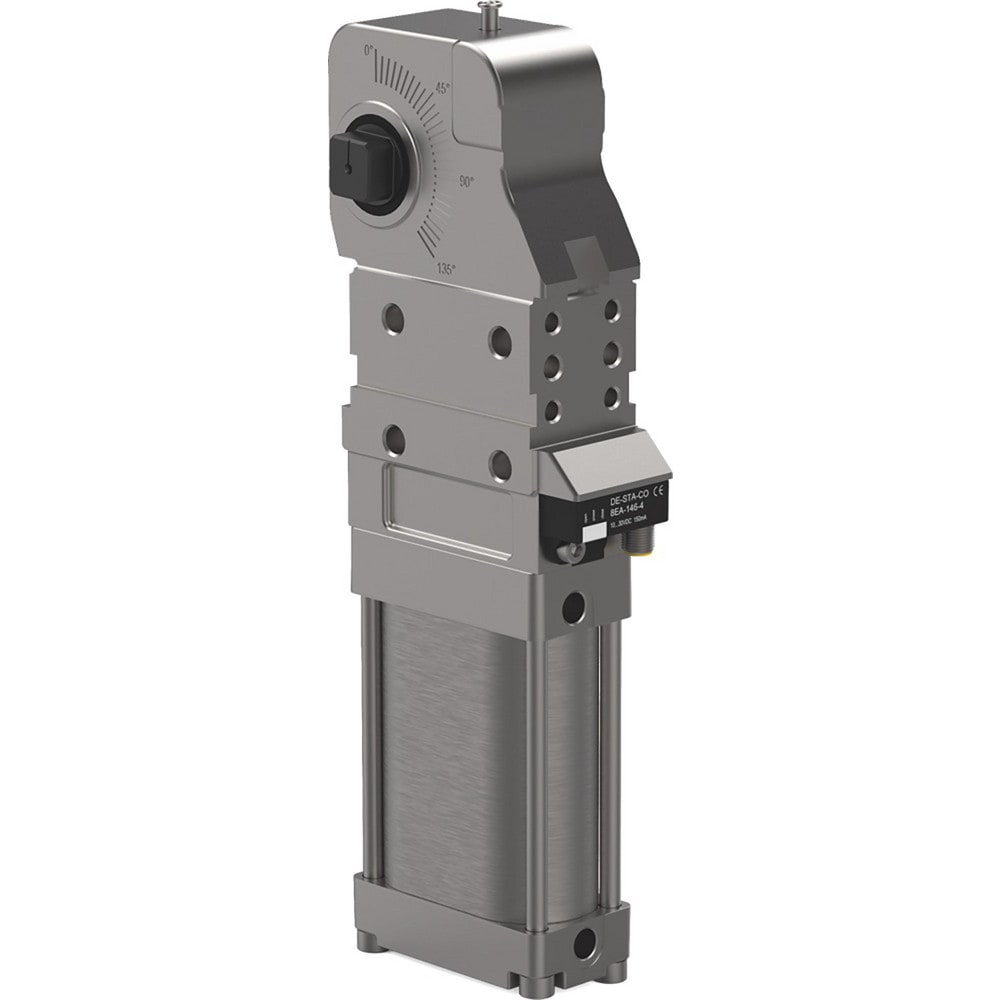

Power Hold-Down Toggle Clamps; Bar End Type: Closed; Holding Capacity - Inner (kg): 183; Holding Capacity - Inner (N): 1800; Holding Capacity
Item #: 64507593
Brand: De-Sta-Co
Model #: 82M-3N030063L8
Product Specifications
| Bar End Type | Closed |
| Holding Capacity - Inner (kg) | 183 |
| Holding Capacity - Inner (N) | 1800 |
| Holding Capacity - Inner (Lb.) | 1327 |
| Bar Opening (Degrees) | 135 |
| Bar Style | Solid |
| Cylinder Bore Size (Decimal Inch) | 2.4803 |
| Cylinder Bore Size (mm) | 63.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.1700 |
| Length Distance Between Mount Holes (mm) | 55.00 |
| Maximum Air Pressure (bar) | 6.00 |
| Maximum Air Pressure (psig) | 87.00 |
| Maximum Mechanical Advantage | 1800 Nm Maximum Holding Torque at 5 bar |
| Mounting Hole Size (mm) | M8;M10 |
| Mounting Orientation | Vertical; Horizontal |
| Outer Clamping Force (Lb.) | 310 |
| Outer Clamping Force (N) | 420 |
| Outer Load Capacity (Lb.) | 1327 |
| Outer Load Capacity (N) | 1800 |
| Overall Closed Height (mm) | 350.50 |
| Overall Closed Height (Decimal Inch) | 13.80 |
| Overall Closed Length (mm) | 111.50 |
| Overall Closed Length (Decimal Inch) | 4.39 |
| Overall Open Height (Decimal Inch) | 13.80 |
| Overall Open Height (mm) | 350.50 |
| Overall Open Length (mm) | 111.50 |
| Overall Open Length (Decimal Inch) | 4.3900 |
| Sensor Compatibility | DESTACO Integrated Sensor |
| Width Distance Between Mount Holes (Decimal Inch) | 1.1800 |
| Width Distance Between Mount Holes (mm) | 30.00 |
| UNSPSC Code | 31162900 |
| Body Material | Aluminum |
| Port Size | G 1/4 |
| Includes | L8 PNP Sensor with In-line M12x1 Connector |
| Air Requirement (psi) | 80 to 85 |
| Maximum Clamping Torque at 72 psig (Lb.) | 310 |
| Overall Length (Decimal Inch) | 13.7992 |
| Minimum Operating Temperature F | -14.000 |
| Maximum Operating Temperature F | 194.000 |
| Minimum Operating Temperature C | -10.00 |
| Maximum Operating Temperature C | 90.000 |
| Bar End Type | Closed |
| Holding Capacity - Inner (kg) | 183 |
| Holding Capacity - Inner (N) | 1800 |
| Holding Capacity - Inner (Lb.) | 1327 |
| Bar Opening (Degrees) | 135 |
| Bar Style | Solid |
| Cylinder Bore Size (Decimal Inch) | 2.4803 |
| Cylinder Bore Size (mm) | 63.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.1700 |
| Length Distance Between Mount Holes (mm) | 55.00 |
| Maximum Air Pressure (bar) | 6.00 |
| Maximum Air Pressure (psig) | 87.00 |
| Maximum Mechanical Advantage | 1800 Nm Maximum Holding Torque at 5 bar |
| Mounting Hole Size (mm) | M8;M10 |
| Mounting Orientation | Vertical; Horizontal |
| Outer Clamping Force (Lb.) | 310 |
| Outer Clamping Force (N) | 420 |
| Outer Load Capacity (Lb.) | 1327 |
| Outer Load Capacity (N) | 1800 |
| Overall Closed Height (mm) | 350.50 |
| Overall Closed Height (Decimal Inch) | 13.80 |
| Overall Closed Length (mm) | 111.50 |
| Overall Closed Length (Decimal Inch) | 4.39 |
| Overall Open Height (Decimal Inch) | 13.80 |
| Overall Open Height (mm) | 350.50 |
| Overall Open Length (mm) | 111.50 |
| Overall Open Length (Decimal Inch) | 4.3900 |
| Sensor Compatibility | DESTACO Integrated Sensor |
| Width Distance Between Mount Holes (Decimal Inch) | 1.1800 |
| Width Distance Between Mount Holes (mm) | 30.00 |
| UNSPSC Code | 31162900 |
| Body Material | Aluminum |
| Port Size | G 1/4 |
| Includes | L8 PNP Sensor with In-line M12x1 Connector |
| Air Requirement (psi) | 80 to 85 |
| Maximum Clamping Torque at 72 psig (Lb.) | 310 |
| Overall Length (Decimal Inch) | 13.7992 |
| Minimum Operating Temperature F | -14.000 |
| Maximum Operating Temperature F | 194.000 |
| Minimum Operating Temperature C | -10.00 |
| Maximum Operating Temperature C | 90.000 |
| MSC Part # | 64507593 |
| Mfr Part # | 82M-3N030063L8 |
| Country of Origin Country of Origin is subject to change | Thailand |
